Assembly

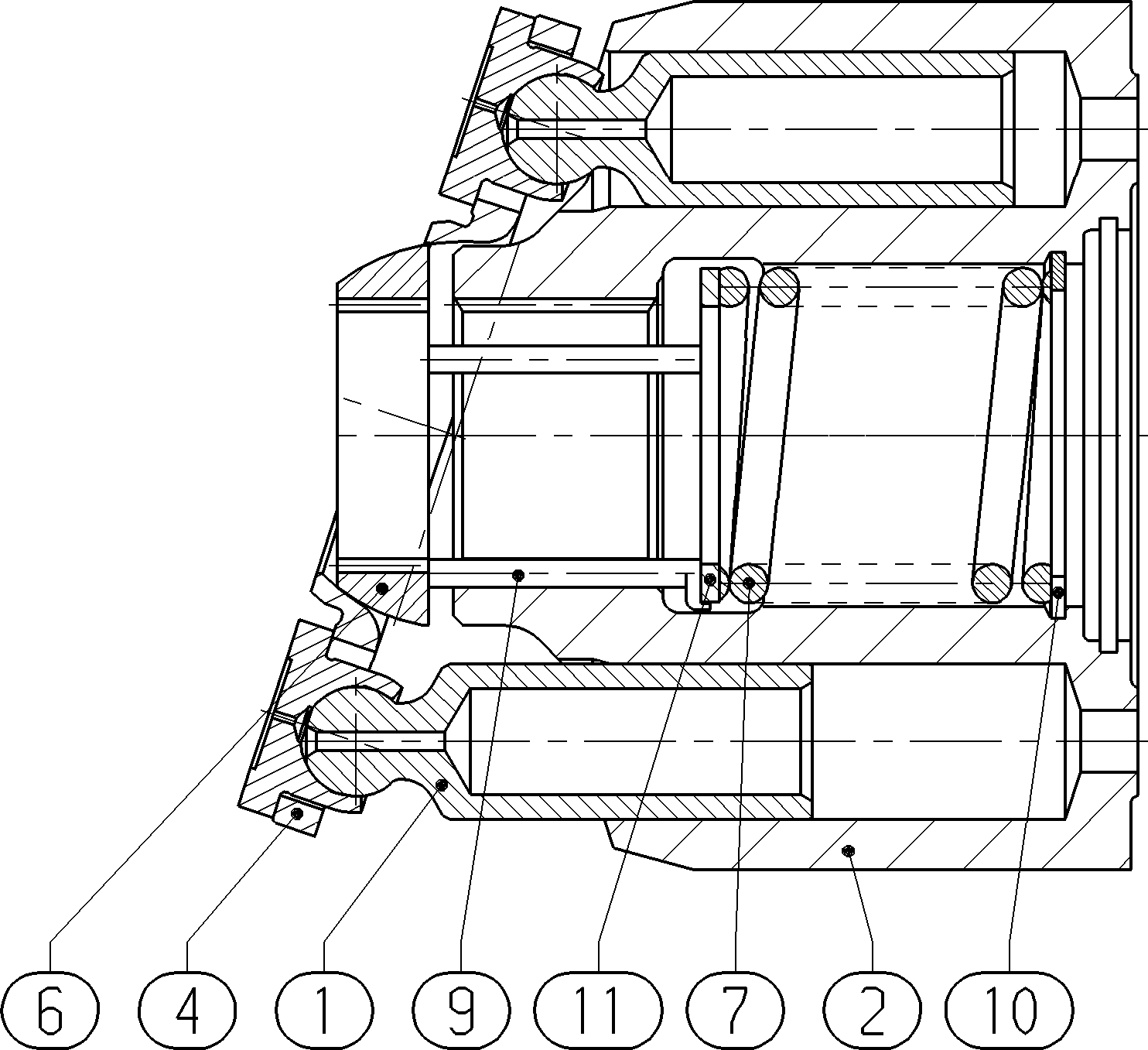

ROTARY GROUPR902513065
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902510585 | PISTON PAD | 9 | ||
| R902510582 | CYLINDER | 1 | ||
| R910989034 | RETAINING PLATE | 1 | ||
| R902443449 | RETAINING BALL | 1 | ||
| R902453636 | COMPRESSION SPRING | 1 | ||
| R902400741 | PRESSURE PIN | 3 | ||
| R910919038 | V-RING | 1 | ||
| R910720186 | SUPPORTING DISC | 1 |
