Assembly

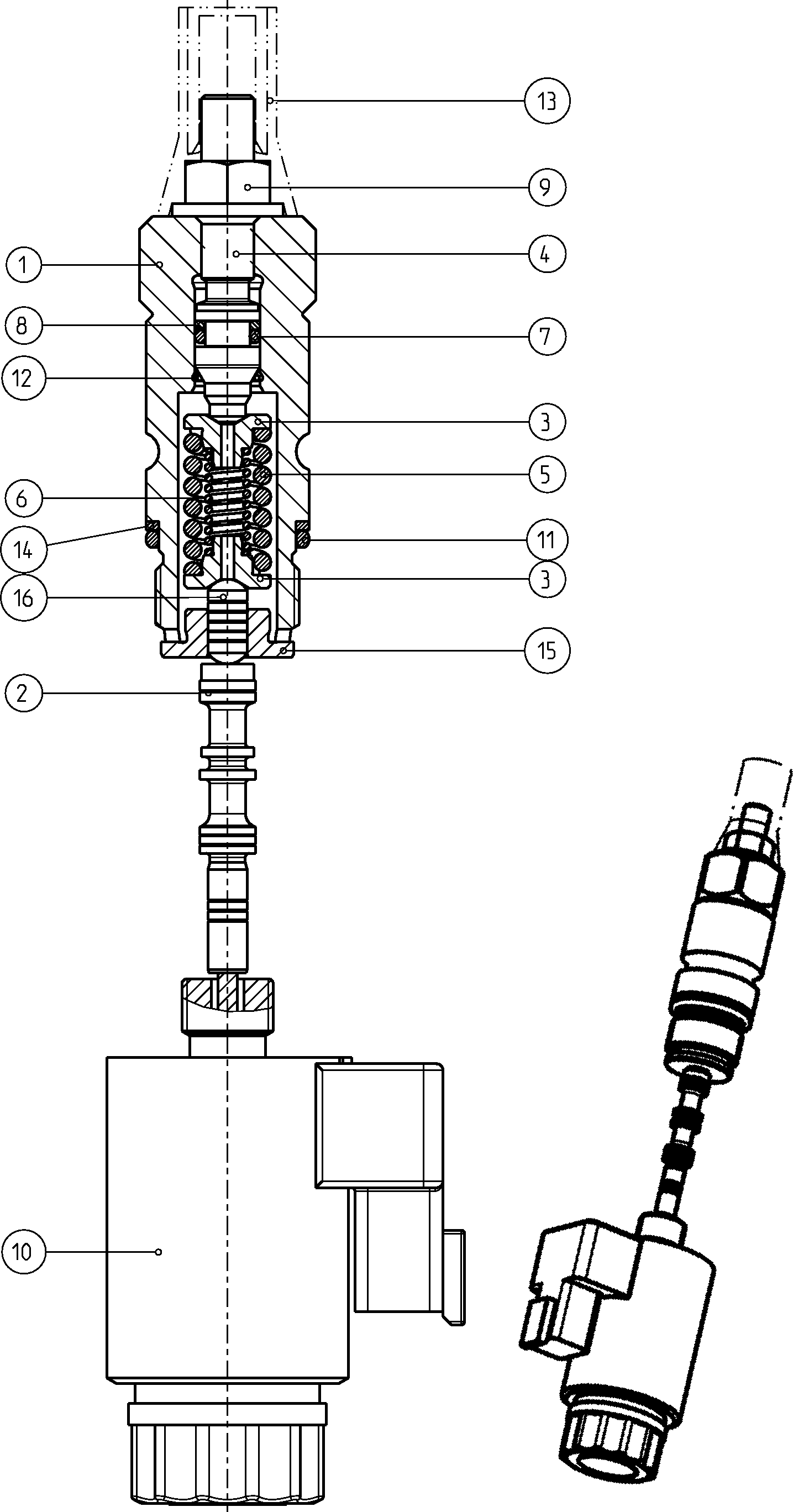

CONTROL ELEMENTR902514430
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902514432 | SCREW PLUG | 1 | ||
| R902514433 | VALVE SPOOL | 1 | ||
| R902465399 | SPRING DISK | 2 | ||
| R902548796 | STUD BOLT | 1 | ||
| R902565661 | COMPRESSION SPRING | 1 | ||
| R902561423 | COMPRESSION SPRING | 1 | ||
| R910080519 | O-RING | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910783307 | DUMMY | 1 | ||
| R902603443 | PROPORTIONAL SOLENOID | 1 | ||
| R910530352 | O-RING | 1 | ||
| R909154421 | SNAP RING | 1 | ||
| R909154494 | SAFETY CAP | 1 | ||
| R913004199 | BACKUP RING | 1 | ||
| R902514434 | BUSHING | 1 | ||
| R902514435 | CONTROL PISTON | 1 |
