Assembly

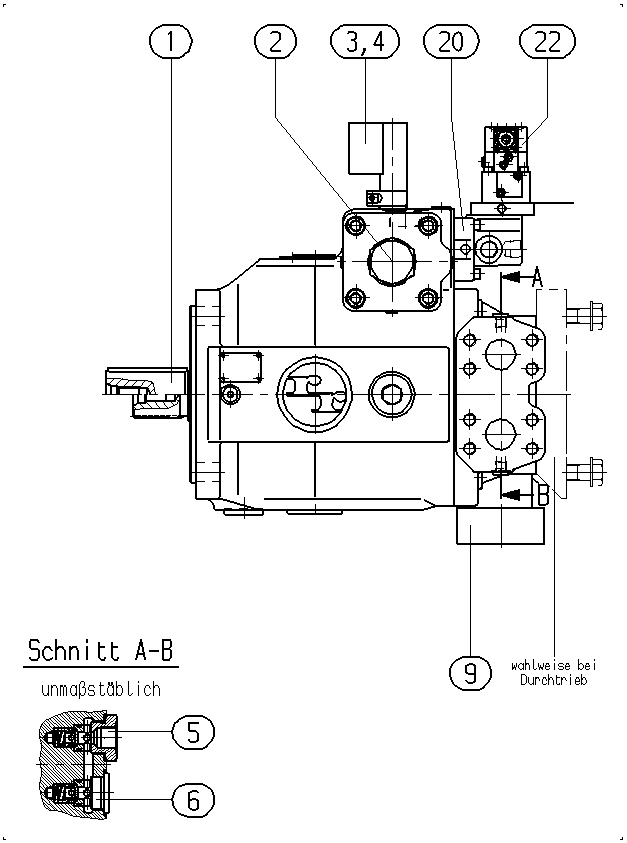

AXIAL-PISTON PUMPR902517098
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902516947 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450073 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901345 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910906960 | VALVE MOUNTING KIT | 1 | ||
| R910906959 | VALVE MOUNTING KIT | 1 | ||
| R902412337 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R910984175 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902432976 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R902602011 | SEAL SCREW | 2 |
