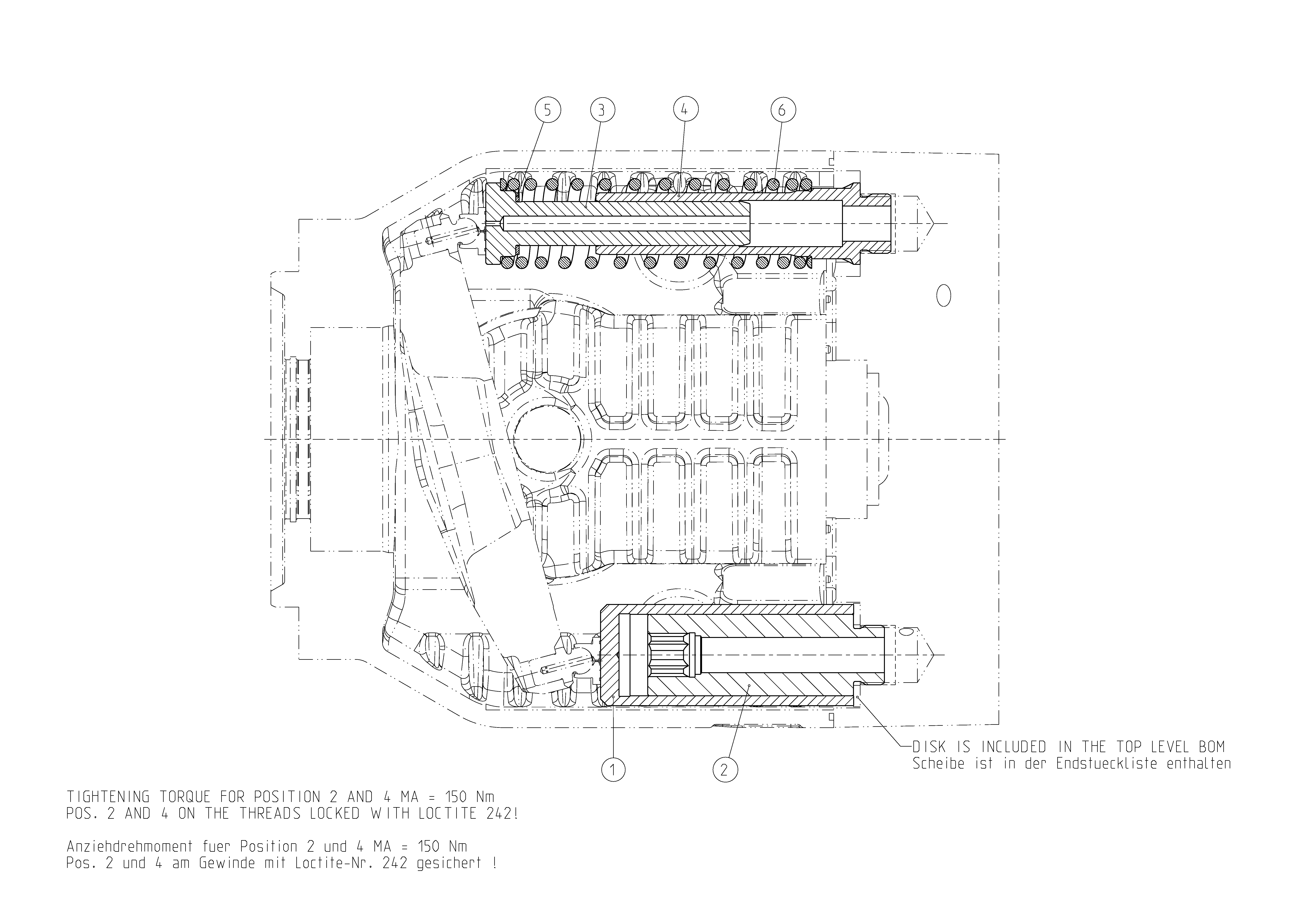

Assembly
ADJUSTING PIECER902519943
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902449652 | ADJUSTING PISTON | 1 | |
| R902485257 | PISTON GUIDE | 1 | ||
| R902456627 | OPPOSED PISTON | 1 | ||
| R902456628 | PISTON GUIDE | 1 | ||
| R902519941 | STOP SLEEVE | 1 | ||
| R902415518 | COMPRESSION SPRING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902449652 | ADJUSTING PISTON | 1 | |
| R902485257 | PISTON GUIDE | 1 | ||
| R902456627 | OPPOSED PISTON | 1 | ||
| R902456628 | PISTON GUIDE | 1 | ||
| R902519941 | STOP SLEEVE | 1 | ||
| R902415518 | COMPRESSION SPRING | 1 |
