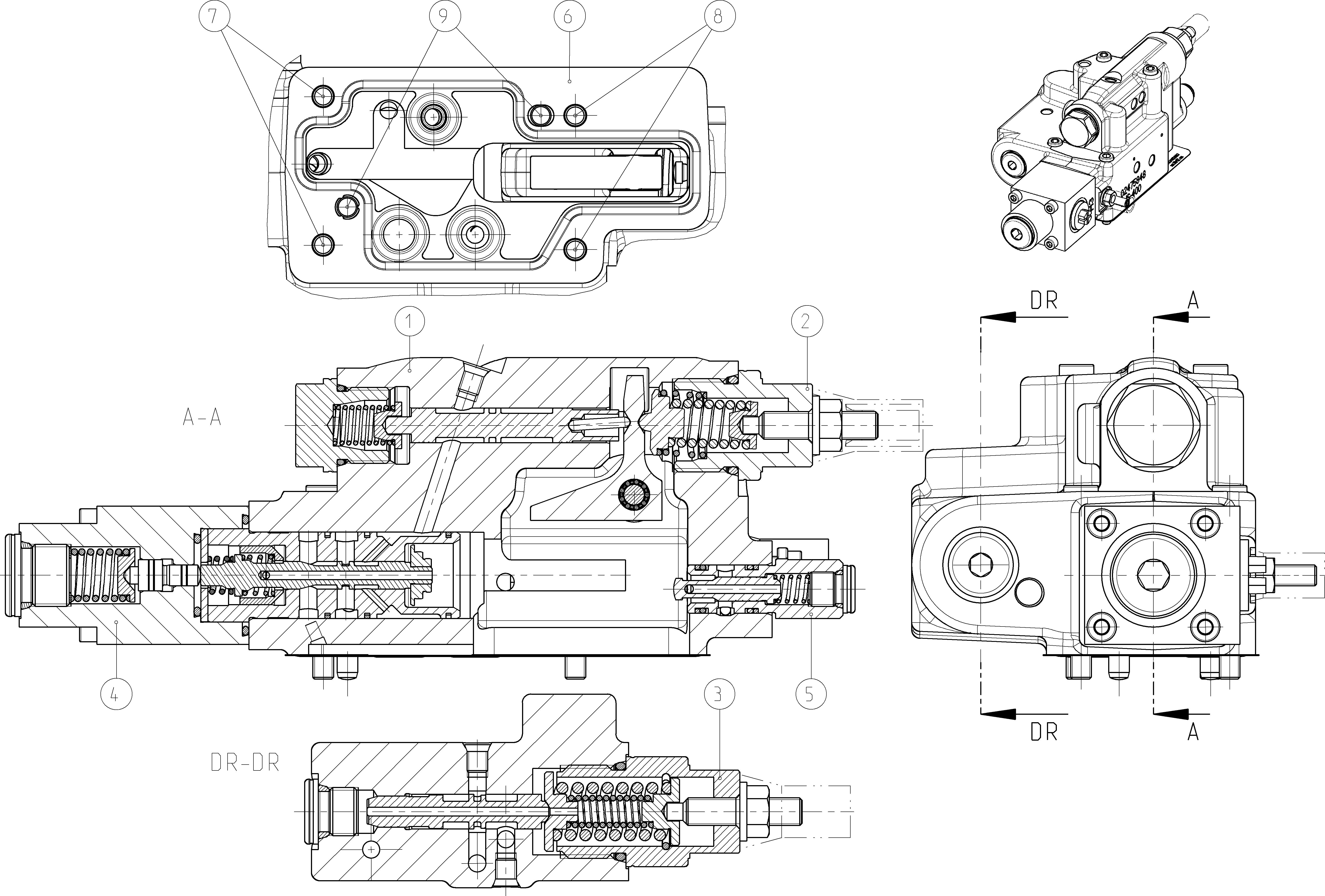

Assembly
CONTROL VALVER902530688
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902476191 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902530706 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902468031 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902475012 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902463255 | SWIVEL STOP | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 2 | ||
| R910979797 | SOCKET HEAD CAP SCREW | 2 | ||
| R900716536 | STRAIGHT PIN | 2 |
