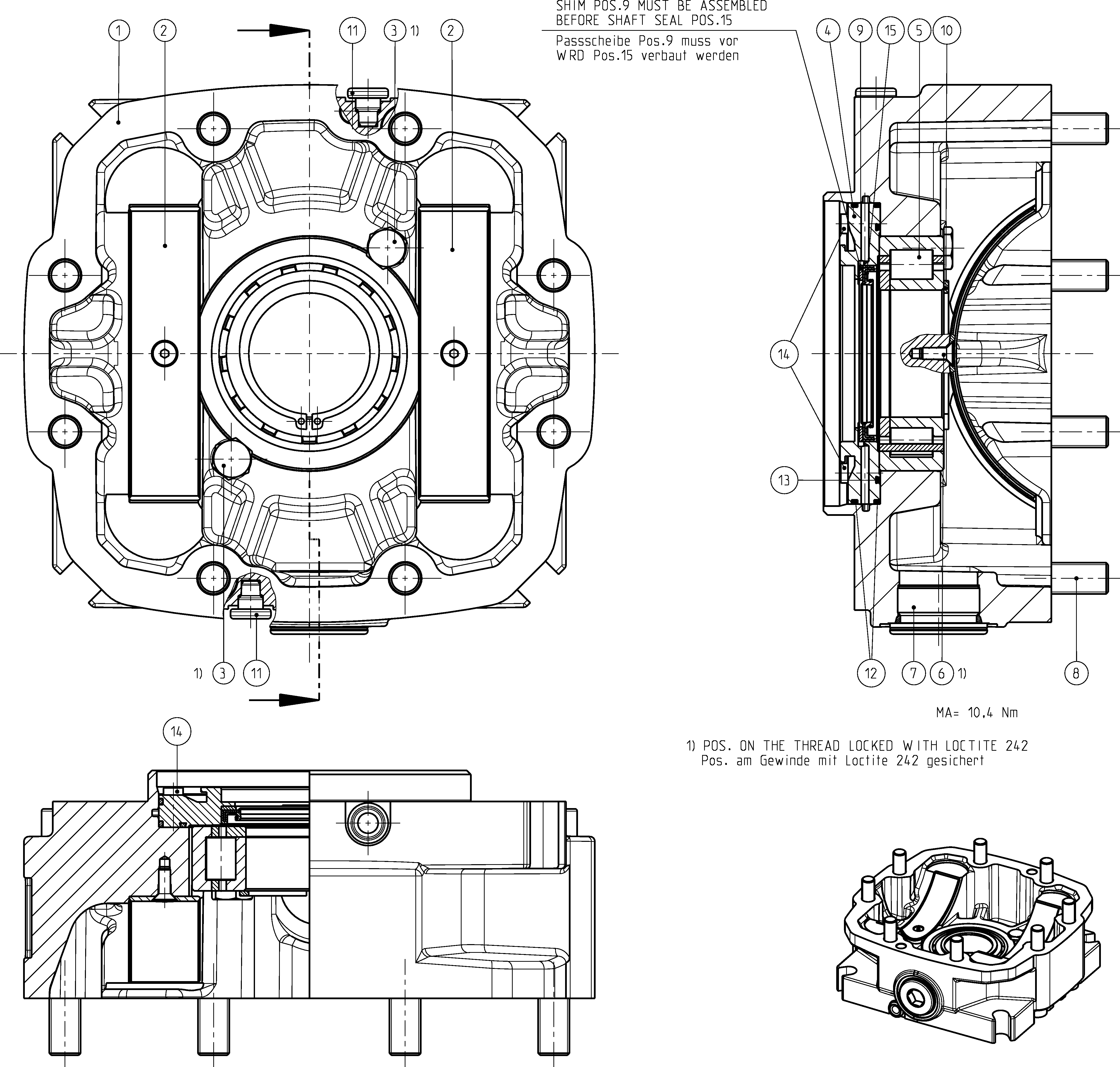

Assembly
BEARING FLANGER902531324
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902532224 | BEARING FLANGE | 1 | ||
| R902555646 | BEARING SHELL | 2 | ||
| R902450342 | STOP SCREWD | 2 | ||
| R902532225 | SEALING FLANGE | 1 | ||
| R902572604 | CYL. ROLLER BEARING | 1 | ||
| R902572000 | COUNTERSUNK-HEAD SCREWD | 2 | ||
| R902601711 | SCREW PLUG | 1 | ||
| R909083147 | SOCKET HEAD CAP SCREW | 8 | ||
| R902400796 | SHIM RING | 1 | ||
| R910105856 | RETAINING RING | 1 | ||
| R902600612 | BLEEDER VALVE | 2 | ||
| R902602060 | O-RING | 2 | ||
| R909830536 | O-RING | 1 | ||
| R909087048 | SOCKET HEAD CAP SCREW | 3 | ||
| R909831663 | ROTARY SHAFT LIP SEAL | 1 |
