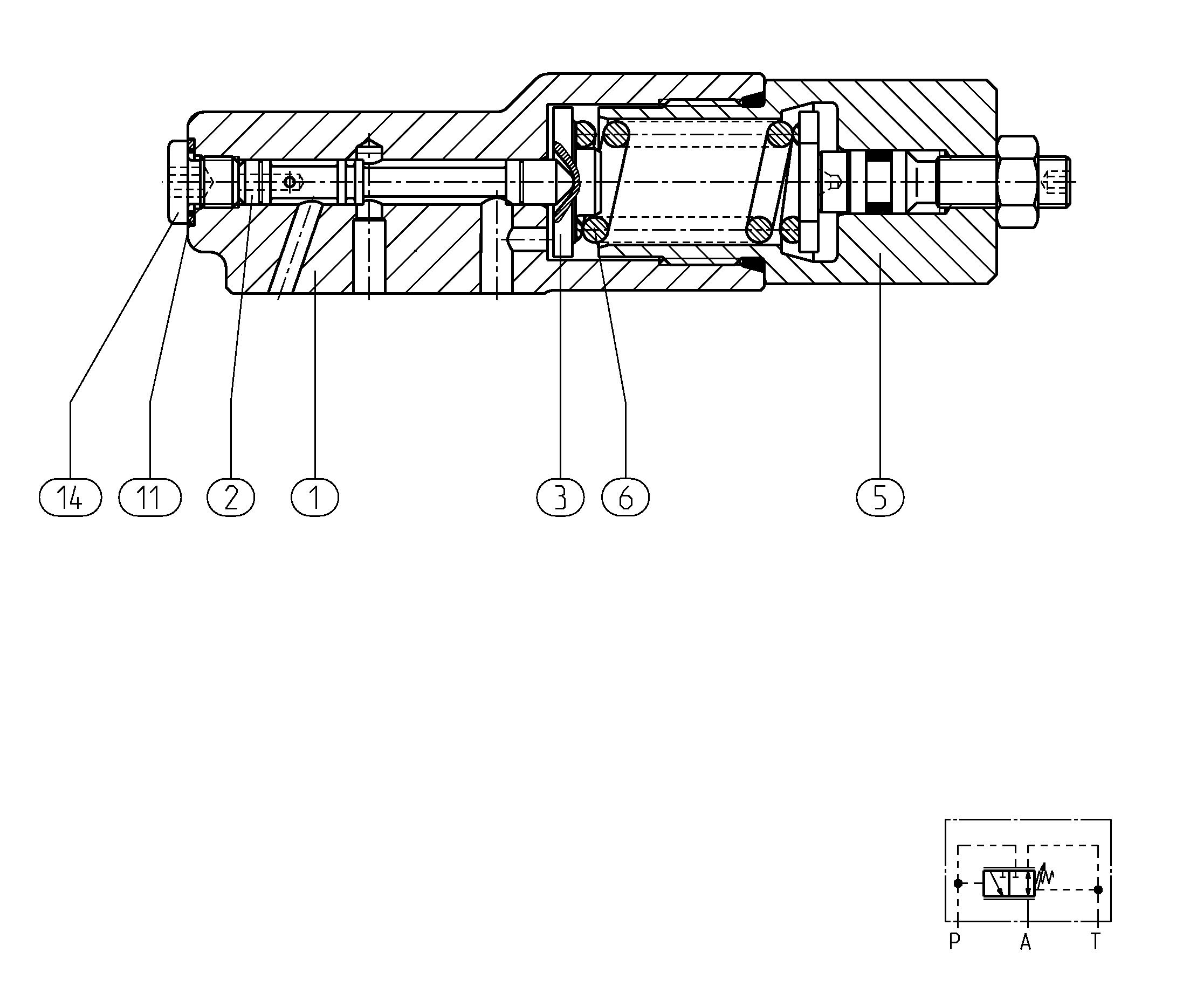

Assembly
CONTROL VALVER902532433
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902532380 | VALVE HOUSING | 1 | ||
| R910991469 | VALVE SPOOL | 1 | ||
| R902532681 | SPRING DISK | 1 | ||
| R902451580 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902409887 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RINGD | 1 | ||
| R910933812 | SCREW PLUG | 1 |
