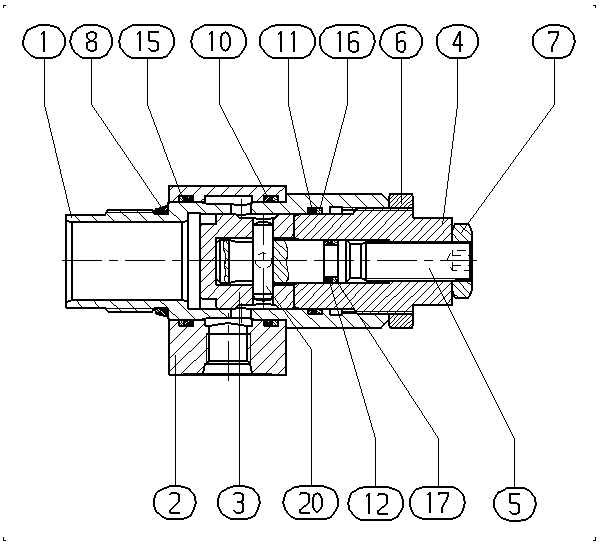

Assembly
PRESSURE SEQUENCE VALVER902532450
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902532374 | SCREW PLUG | 1 | ||
| R910923518 | CONNECTING PIECE | 1 | ||
| R910923519 | CONTROL PISTON | 1 | ||
| R910923520 | ADJUSTING SCREW | 1 | ||
| R910921448 | ADJUSTING BOLT | 1 | ||
| R910923521 | NUT | 1 | ||
| R910388335 | HEXAGON NUT | 1 | ||
| R910919322 | O-RINGD | 1 | ||
| R910919073 | O-RINGD | 2 | ||
| R910907191 | O-RINGD | 1 | ||
| R910514497 | O-RINGD | 1 | ||
| R910923522 | BACKUP RINGD | 2 | ||
| R910923523 | BACKUP RINGD | 1 | ||
| R910921453 | BACKUP RINGD | 1 | ||
| R910277193 | STRAIGHT PIN | 1 |
