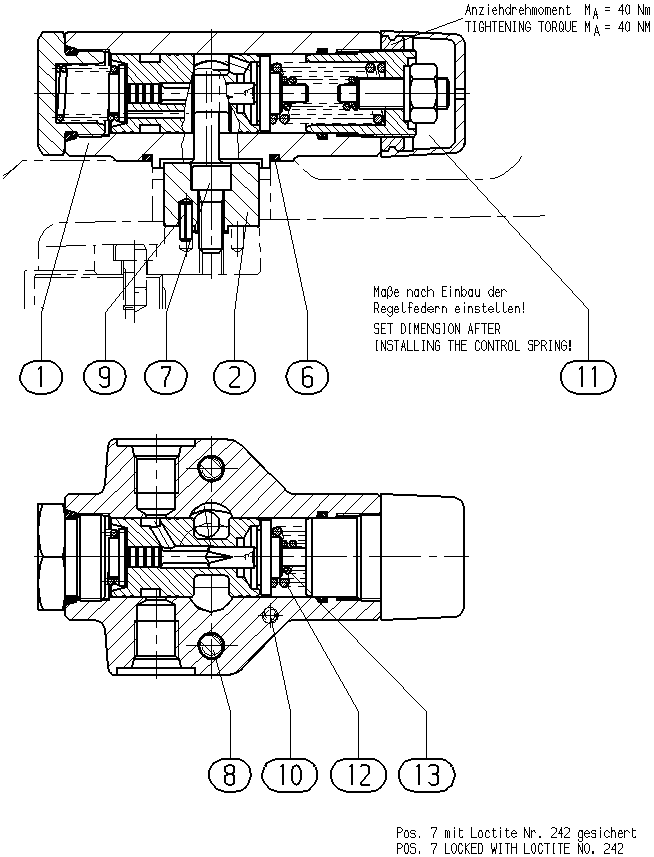

Assembly
CONTROL VALVER902533218
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533214 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910905186 | CARRIER | 1 | ||
| R902448222 | SEALD | 1 | ||
| R910110221 | SOCKET HEAD CAP SCREW | 1 | ||
| R910119083 | SOCKET HEAD CAP SCREW | 2 | ||
| R910106607 | CLAMPING SLEEVE | 1 | ||
| R910106712 | CLAMPING SLEEVE | 1 | ||
| R910783277 | PROTECTIVE CAP | 1 | ||
| R910906883 | COMPRESSION SPRING | 1 | ||
| R910794309 | SPRING | 1 |
