Assembly

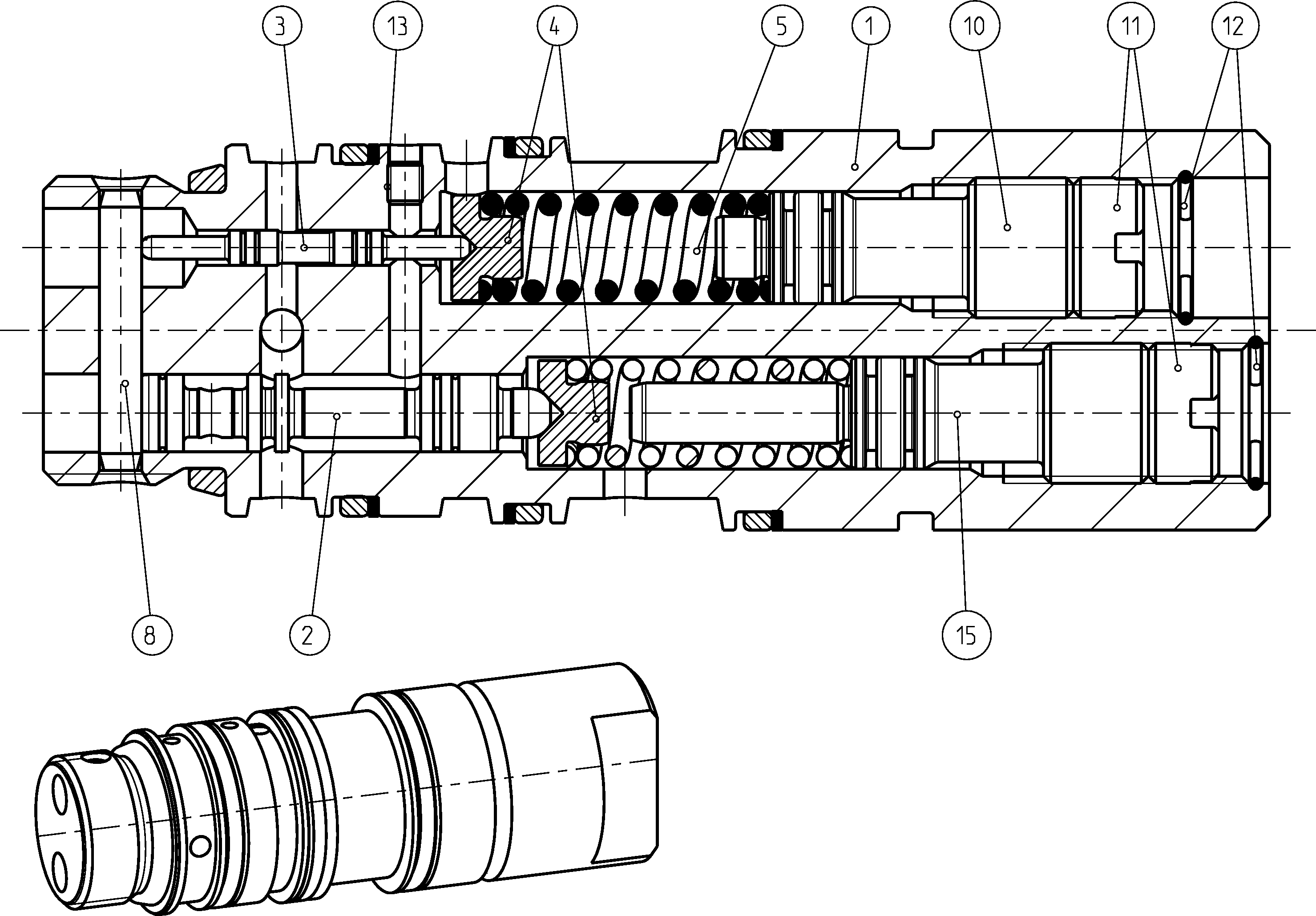

CONTROL VALVER902533741
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902535501 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902530633 | VALVE SPOOL | 1 | ||
| R902510199 | VALVE SPOOL | 1 | ||
| R902510200 | SPRING DISK | 2 | ||
| R902510204 | COMPRESSION SPRING | 2 | ||
| R909087693 | STRAIGHT PIN | 1 | ||
| R902533748 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R902513414 | NUT | 2 | ||
| R909154421 | SNAP RING | 2 | ||
| R343706701 | SETSCREW | 1 | ||
| R902533745 | ADJUSTING PART Assembly parts list →L | 1 |
