Assembly

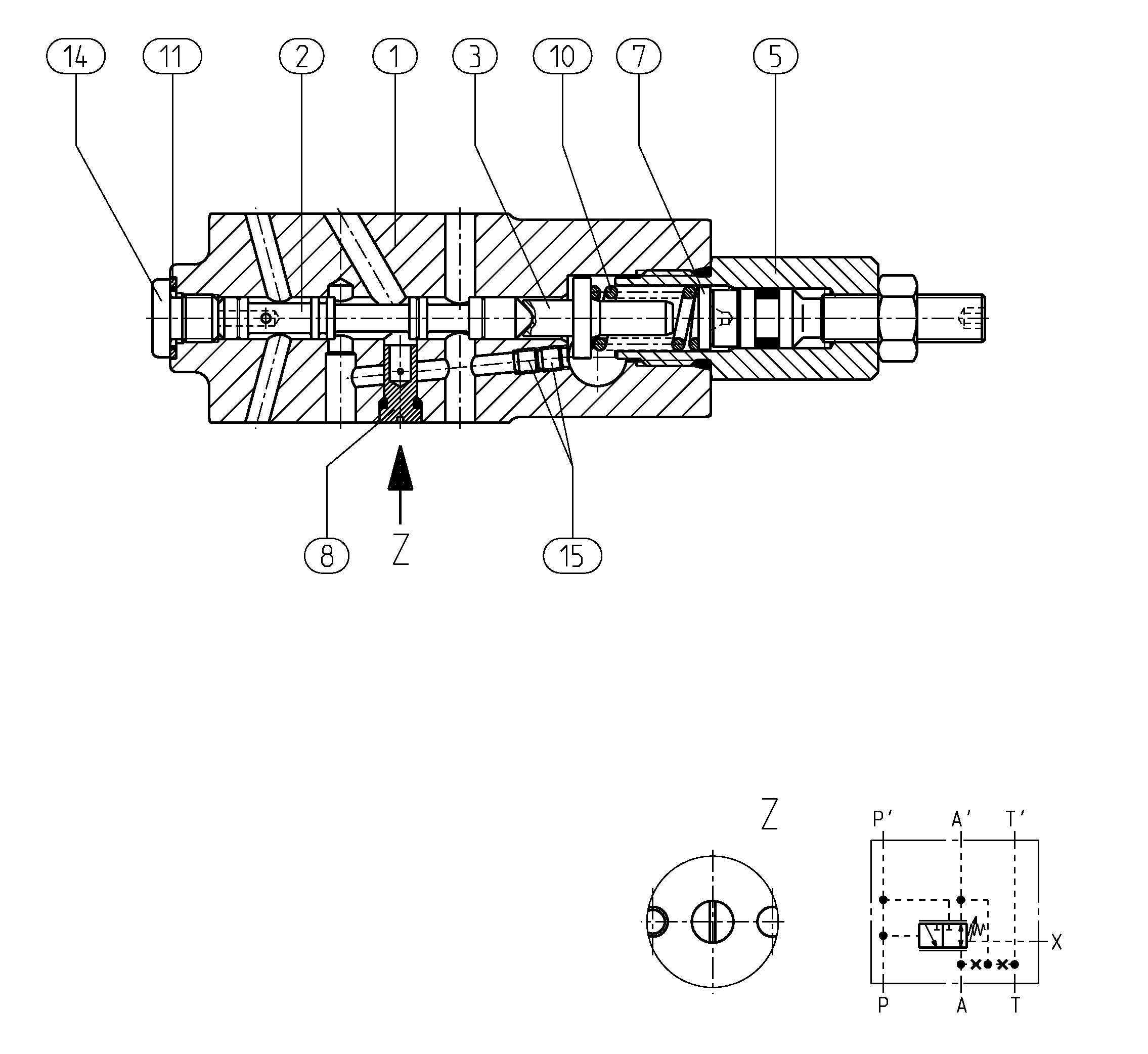

CONTROL VALVER902533849
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533538 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910999779 | SPRING DISK | 1 | ||
| R902477202 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910920596 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RINGD | 1 | ||
| R910933812 | SCREW PLUG | 1 | ||
| R910914741 | SETSCREW | 2 |
