Assembly

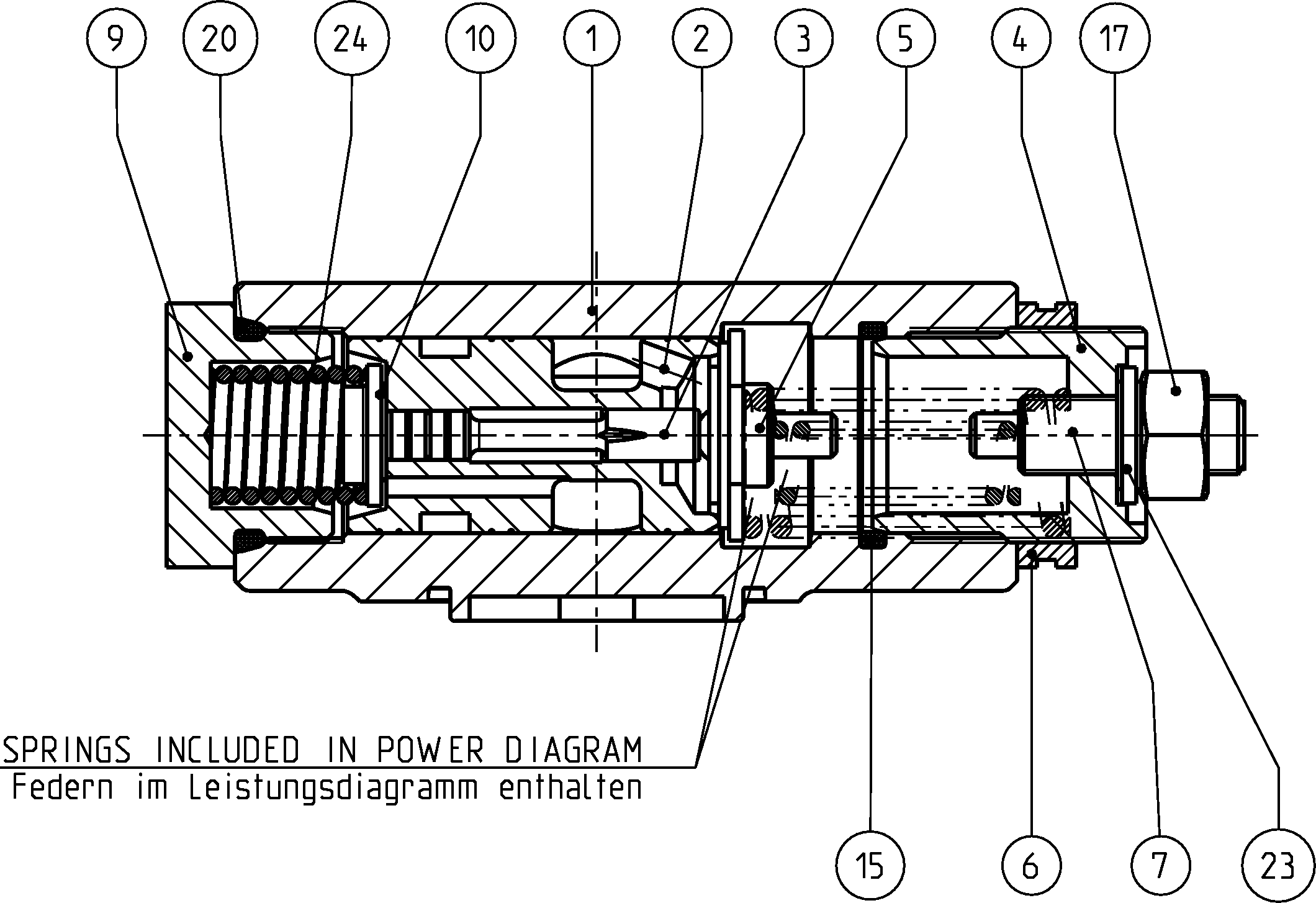

CONTROL VALVER902533932
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902544406 | VALVE HOUSING | 1 | ||
| R902415309 | VALVE SPOOL | 1 | ||
| R902447517 | CONTROL PISTON | 1 | ||
| R910783218 | ADJUSTING SCREW | 1 | ||
| R902533226 | SPRING DISK Assembly parts list →L | 1 | ||
| R910783234 | NUT | 1 | ||
| R910783242 | SETSCREW | 1 | ||
| R902446930 | SCREW PLUG | 1 | ||
| R910935247 | SPRING WASHER | 1 | ||
| R910609994 | O-RINGD | 1 | ||
| R910934194 | HEXAGON NUT | 1 | ||
| R910824747 | O-RINGD | 1 | ||
| R910940445 | BONDED SEAL RINGD | 1 | ||
| R910926647 | COMPRESSION SPRING | 1 |
