Assembly

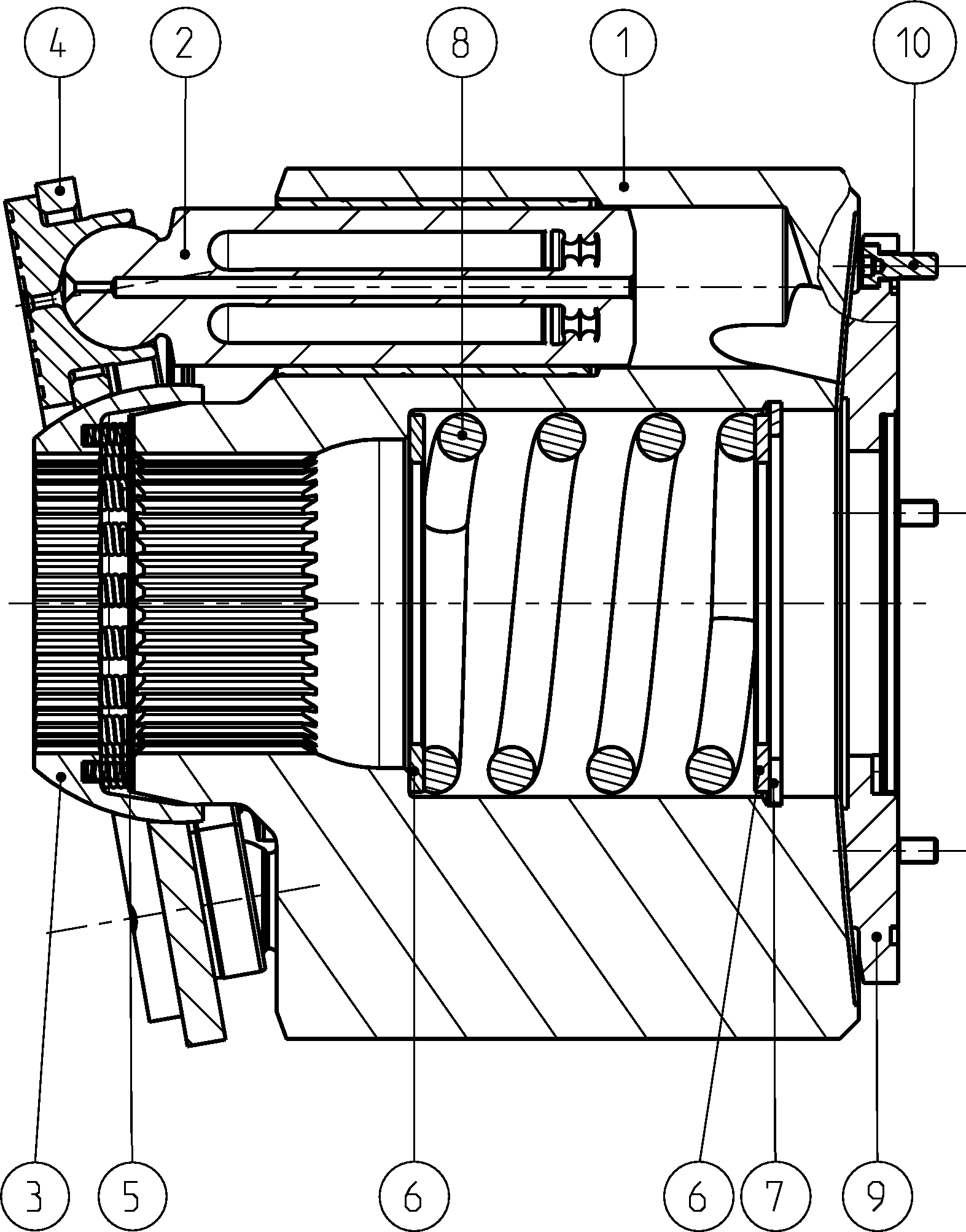

ROTARY GROUPR902534554
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479854 | CYLINDER | 1 | ||
| R902489273 | PISTON PAD | 9 | ||
| R902462899 | RETAINING BALL | 1 | ||
| R902489135 | RETAINING PLATE | 1 | ||
| R902452676 | WASHER | 2 | ||
| R902533192 | WASHER | 2 | ||
| R910116025 | RETAINING RING | 1 | ||
| R902451772 | COMPRESSION SPRING | 1 | ||
| R902560446 | DISTRIBUTOR PLATE | 1 | ||
| R910196827 | SOCKET HEAD CAP SCREW | 6 |
