Assembly

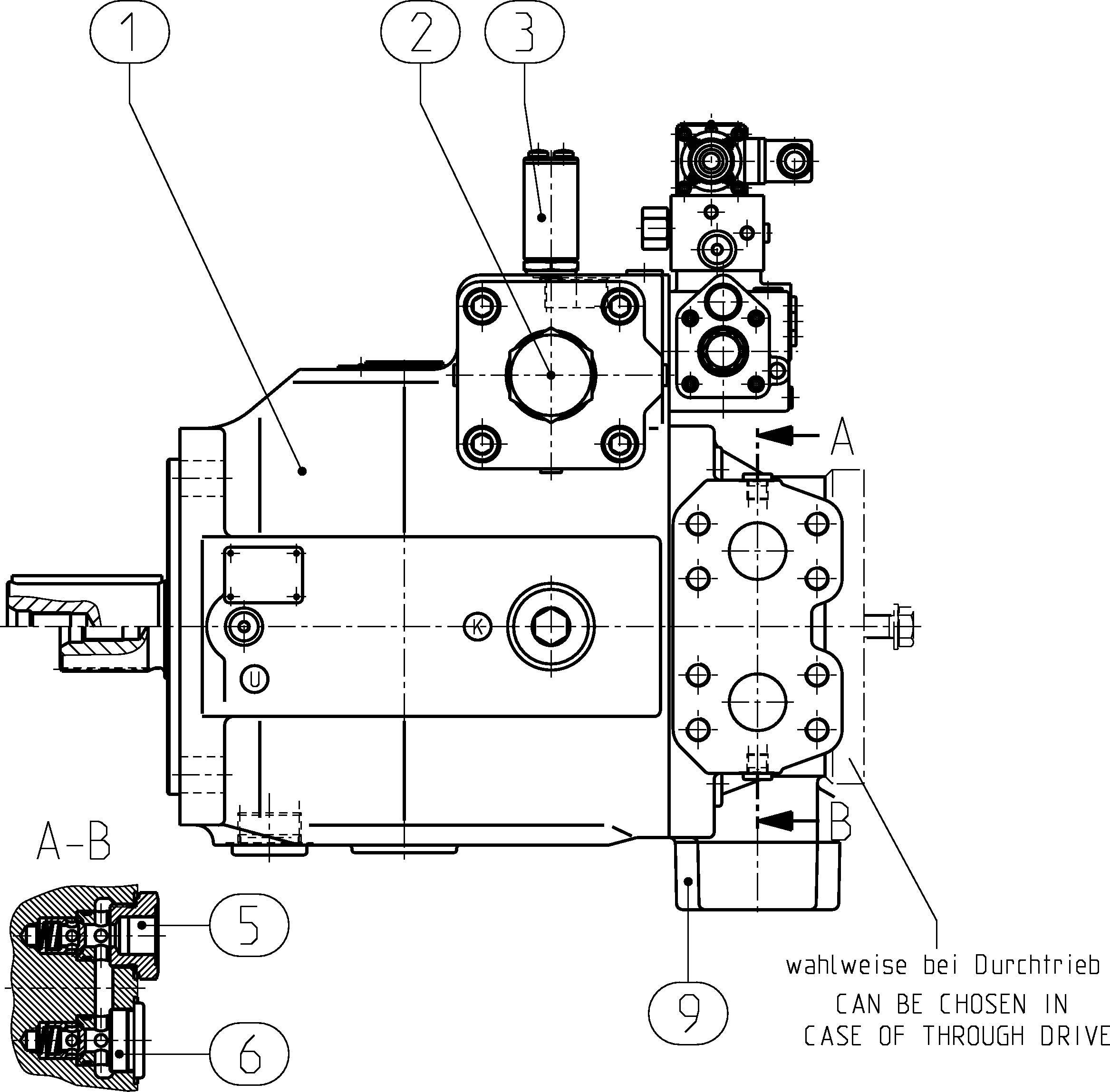

AXIAL-PISTON PUMPR902536701
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902536689 | BASE UNIT Assembly parts list →L | 1 | ||
| R902536700 | CONTROL Assembly parts list →L | 1 | ||
| R902471376 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910906960 | VALVE MOUNTING KIT | 1 | ||
| R910906959 | VALVE MOUNTING KIT | 1 | ||
| R902412337 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902538905 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602010 | SEAL SCREW | 1 |
