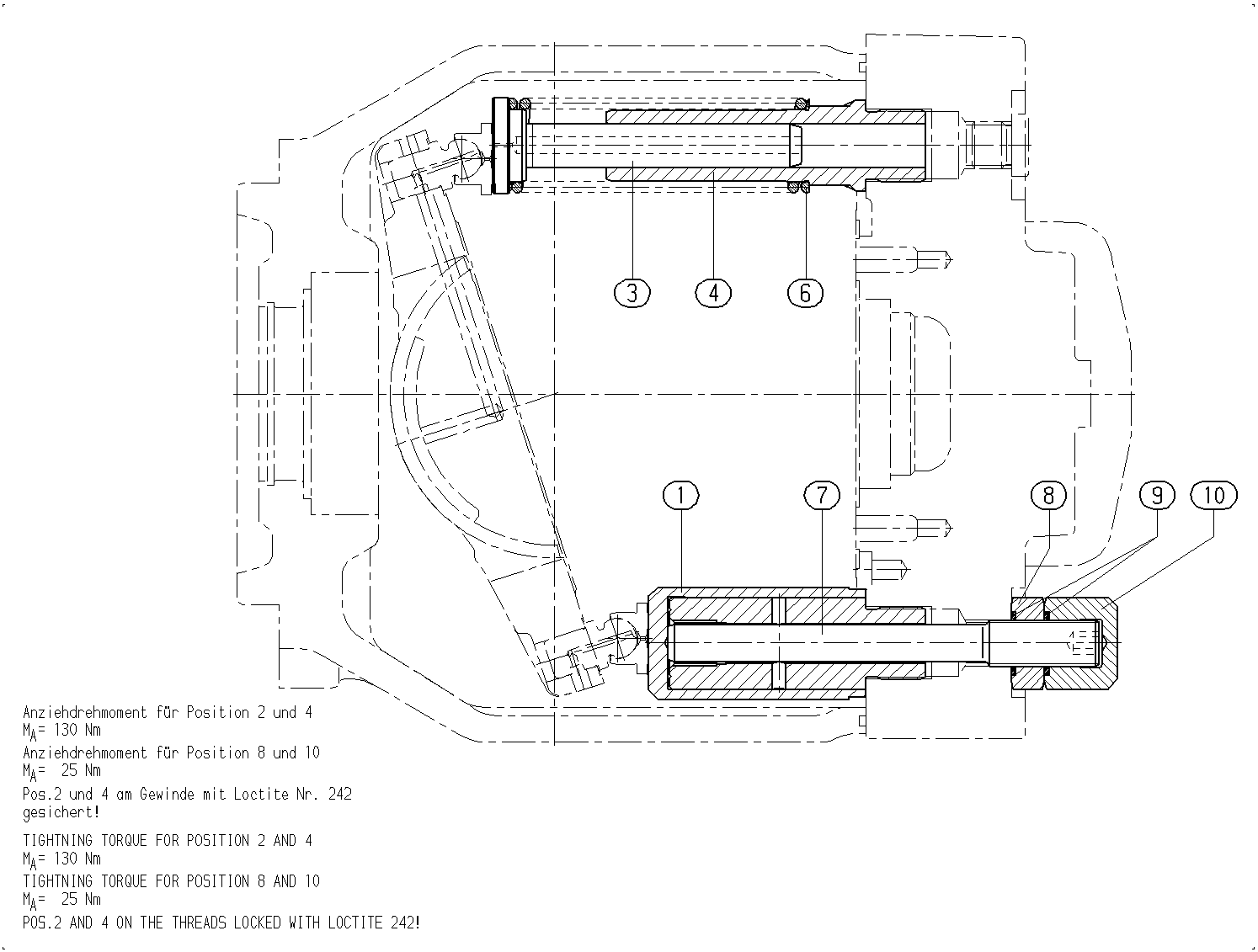

Assembly
ADJUSTING PIECER902538126
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960572 | ADJUSTING PISTON | 1 | ||
| 2 | R902533332 | PISTON GUIDE | 1 | |
| R910908935 | OPPOSED PISTON | 1 | ||
| R902534018 | PISTON GUIDE | 1 | ||
| R910790052 | COMPRESSION SPRING | 1 | ||
| R902538212 | STOP SCREW | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960572 | ADJUSTING PISTON | 1 | ||
| 2 | R902533332 | PISTON GUIDE | 1 | |
| R910908935 | OPPOSED PISTON | 1 | ||
| R902534018 | PISTON GUIDE | 1 | ||
| R910790052 | COMPRESSION SPRING | 1 | ||
| R902538212 | STOP SCREW | 1 |
