Assembly

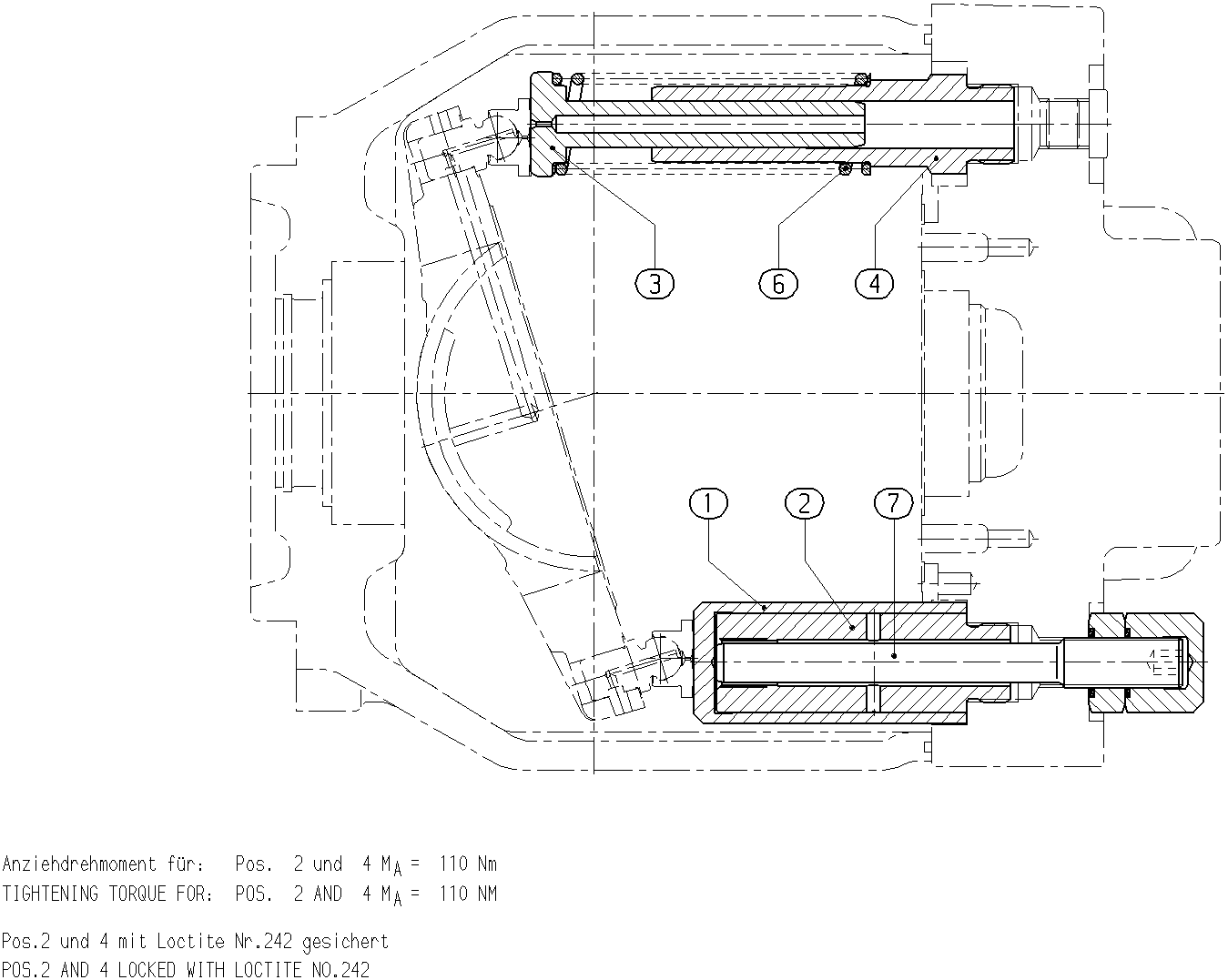

ADJUSTING PIECER902538127
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916313 | ADJUSTING PISTON | 1 | ||
| R902533331 | PISTON GUIDE | 1 | ||
| R910908935 | OPPOSED PISTON | 1 | ||
| R902534015 | PISTON GUIDE | 1 | ||
| R910790052 | COMPRESSION SPRING | 1 | ||
| R902538211 | STOP SCREW | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916313 | ADJUSTING PISTON | 1 | ||
| R902533331 | PISTON GUIDE | 1 | ||
| R910908935 | OPPOSED PISTON | 1 | ||
| R902534015 | PISTON GUIDE | 1 | ||
| R910790052 | COMPRESSION SPRING | 1 | ||
| R902538211 | STOP SCREW | 1 |
