Assembly

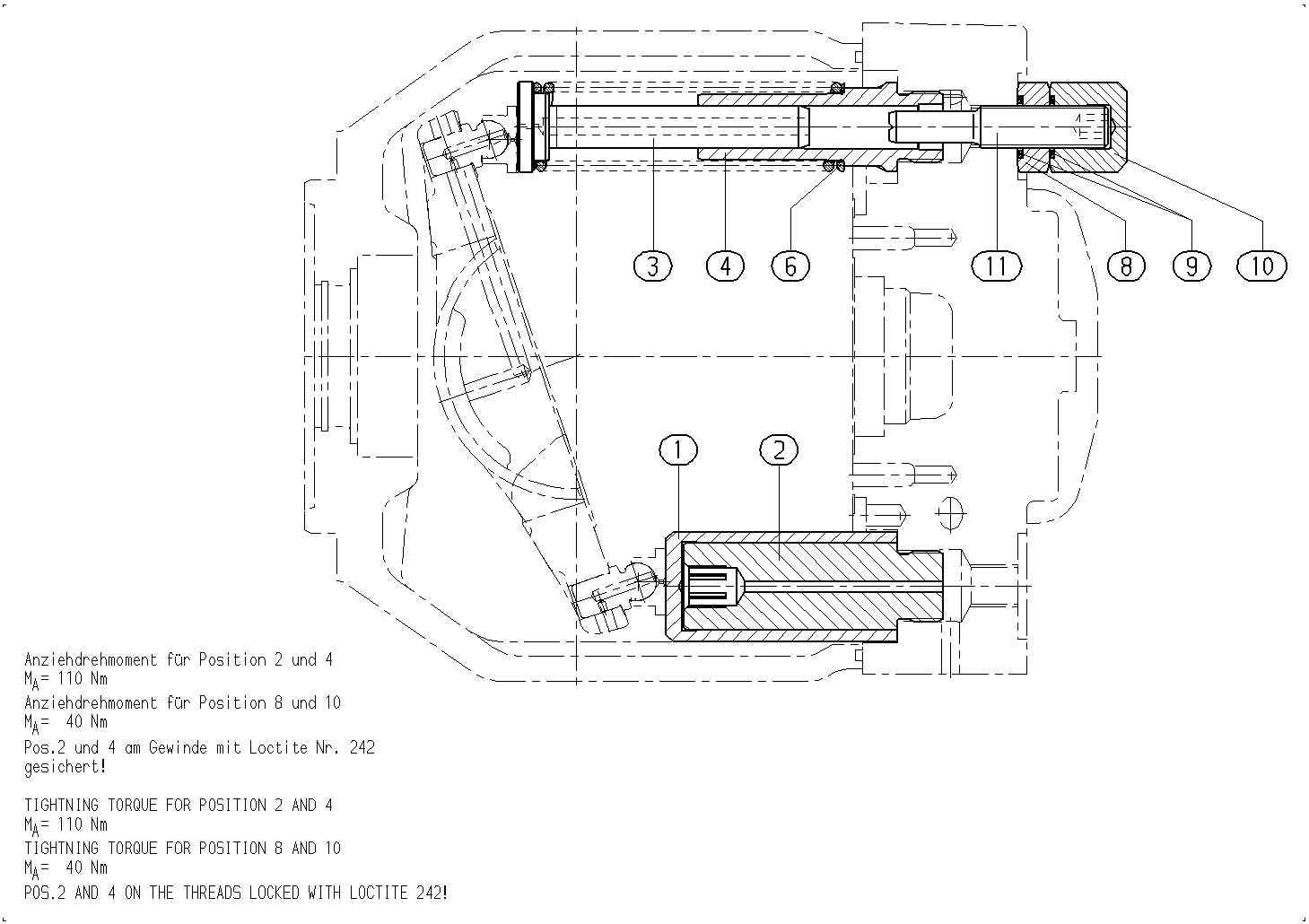

ADJUSTING PIECER902538130
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910913441 | ADJUSTING PISTON | 1 | ||
| R910913559 | PISTON GUIDE | 1 | ||
| R910909054 | OPPOSED PISTON | 1 | ||
| R910909055 | PISTON GUIDE | 1 | ||
| R910909028 | COMPRESSION SPRING | 1 | ||
| R902538192 | STOP SCREW | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910913441 | ADJUSTING PISTON | 1 | ||
| R910913559 | PISTON GUIDE | 1 | ||
| R910909054 | OPPOSED PISTON | 1 | ||
| R910909055 | PISTON GUIDE | 1 | ||
| R910909028 | COMPRESSION SPRING | 1 | ||
| R902538192 | STOP SCREW | 1 |
