Assembly

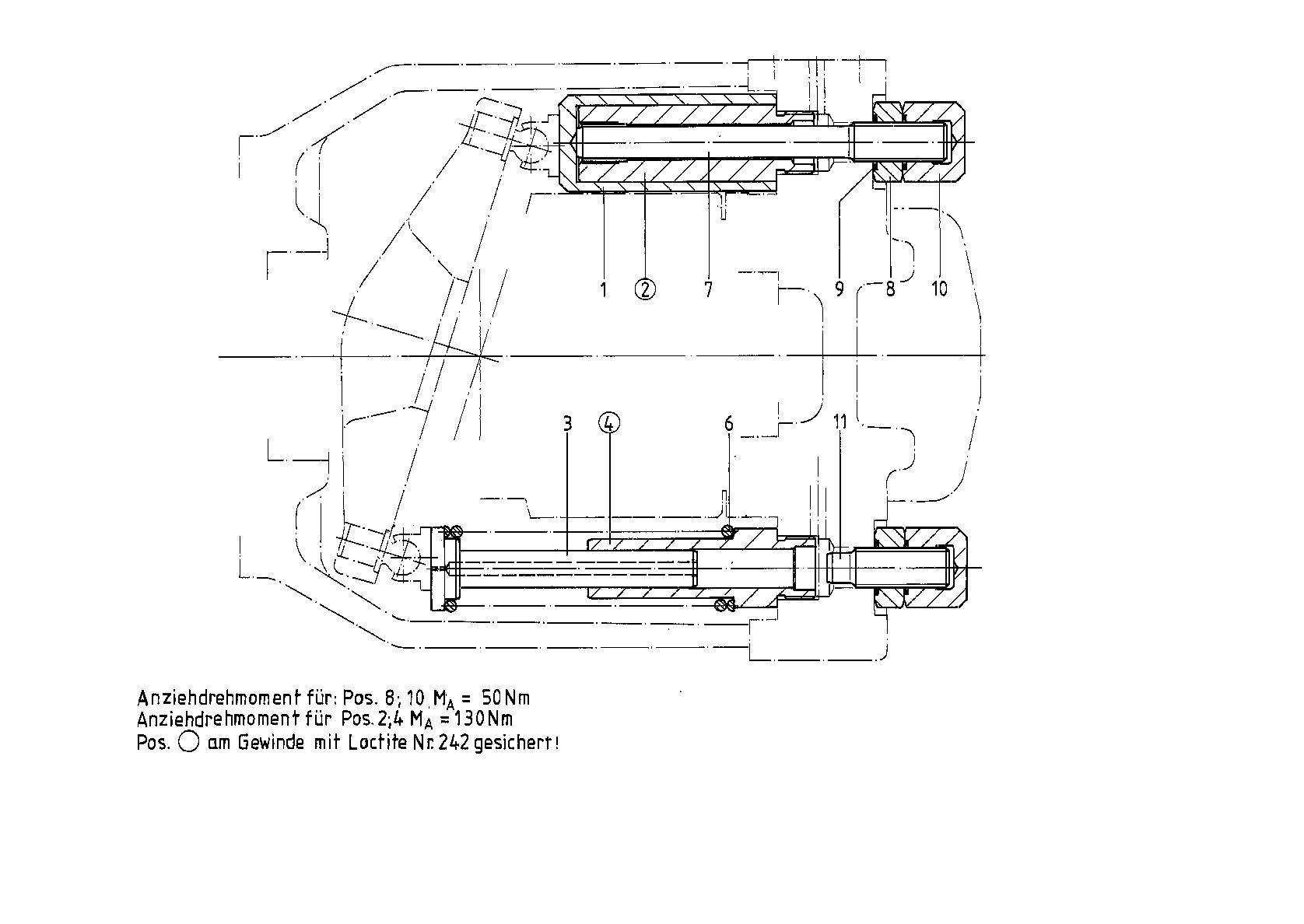

ADJUSTING PIECER902538143
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910916313 | ADJUSTING PISTON | 1 | |
| R902533329 | PISTON GUIDE | 1 | ||
| 3 | R910908935 | OPPOSED PISTON | 1 | |
| 4 | R910908936 | PISTON GUIDE | 1 | |
| 6 | R910908937 | COMPRESSION SPRING | 1 | |
| R902538211 | STOP SCREW | 1 | ||
| 11 | R902538198 | STOP SCREW | 1 |
