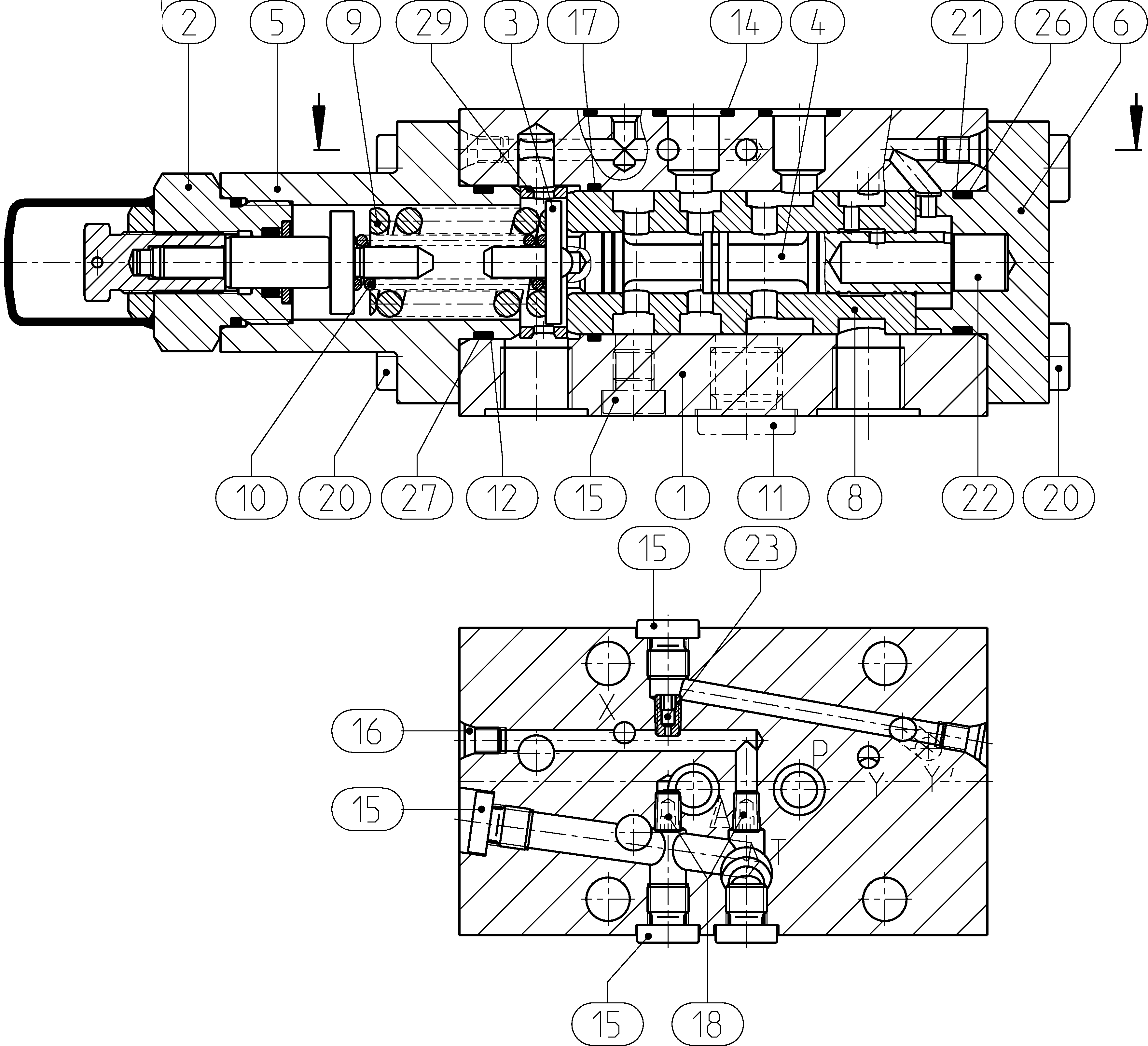

Assembly
CONTROL VALVER902539073
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902428208 | VALVE HOUSING | 1 | ||
| R902532285 | CONTROL Assembly parts list →L | 1 | ||
| R910914306 | SPRING DISK | 1 | ||
| R910914305 | VALVE SPOOL | 1 | ||
| R910914300 | SPRING HOUSING | 1 | ||
| R910914303 | COVER | 1 | ||
| R910999155 | CONTROL SLEEVE | 1 | ||
| R910927035 | COMPRESSION SPRING | 1 | ||
| R910927034 | COMPRESSION SPRING | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R910902854 | O-RINGD | 1 | ||
| R913028093 | R-RING | 5 | ||
| R909156863 | SCREW PLUGD | 5 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910916166 | O-RINGD | 1 | ||
| R910465976 | SETSCREW | 2 | ||
| R910584614 | SOCKET HEAD CAP SCREW | 8 | ||
| R910587206 | O-RINGD | 1 | ||
| R910921023 | CYLINDRICAL ROLLER | 1 | ||
| R910923852 | NOZZLE | 1 | ||
| R910925020 | BACKUP RINGD | 1 | ||
| R910921451 | BACKUP RINGD | 1 | ||
| R910929747 | RING | 1 |
