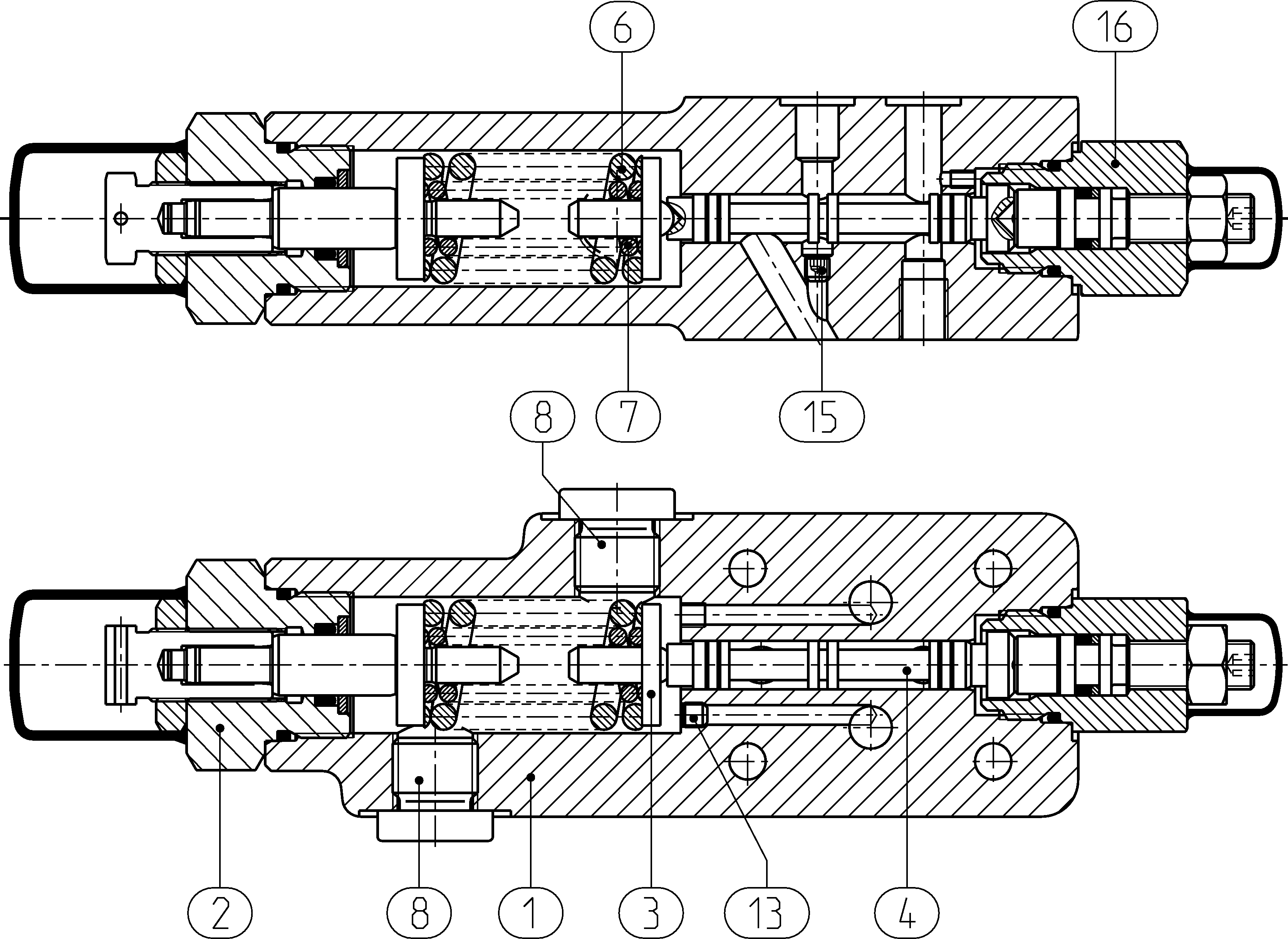

Assembly
CONTROL VALVER902539162
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910908074 | VALVE HOUSING | 1 | ||
| R902532286 | CONTROL Assembly parts list →L | 1 | ||
| R910799793 | SPRING DISK | 1 | ||
| R910921026 | VALVE SPOOL | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R910914741 | SETSCREW | 1 | ||
| R910921431 | NOZZLE | 1 | ||
| R910960006 | STROKE LIMITER Assembly parts list →L | 1 | ||
| 61 | R900156528 | PLATE | 1 | |
| 62 | R900156528 | PLATE | 1 | |
| 91 | R902556829 | NAMEPLATE | 1 | |
| 92 | R909084286 | GROOVED NAIL | 2 |
