Assembly

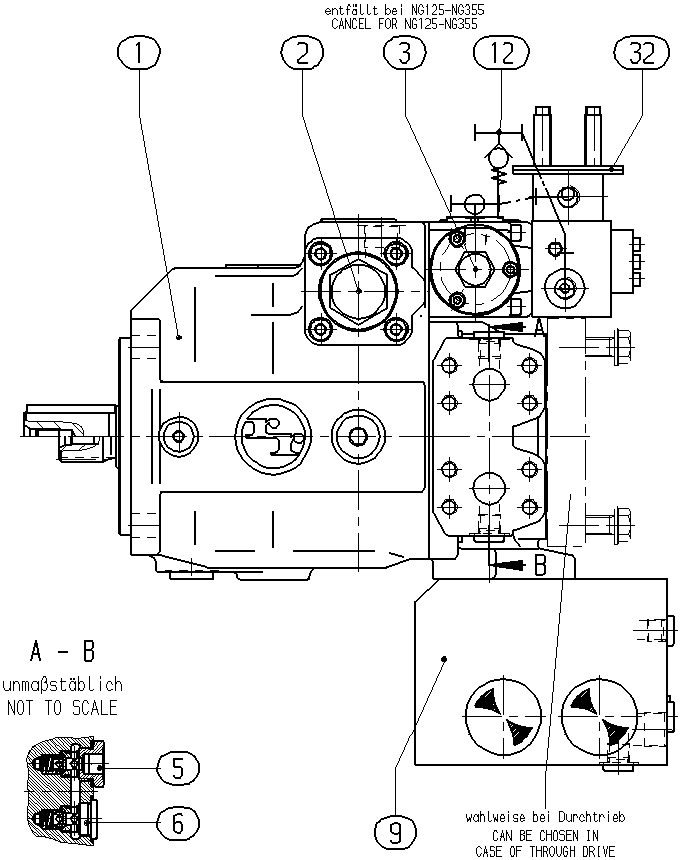

AXIAL-PISTON PUMPR902539399
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910932335 | BASE UNIT Assembly parts list →L | 1 | ||
| R902434042 | CONTROL Assembly parts list →L | 1 | ||
| R910920957 | SPRING PACK Assembly parts list →L | 1 | ||
| R910953539 | VALVE MOUNTING KIT | 1 | ||
| R910953628 | VALVE MOUNTING KIT | 1 | ||
| R902473632 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R910926624 | PIPING PLAN Assembly parts list →L | 1 | ||
| R902479200 | COVER Assembly parts list →L | 1 | ||
| 61 | R902805707 | SHIPPING PROTECTION | 2 | |
| 62 | R902602011 | SEAL SCREW | 1 | |
| 64 | R902602010 | SEAL SCREW | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 81 | R910723126 | PLUG | 1 |
