Assembly

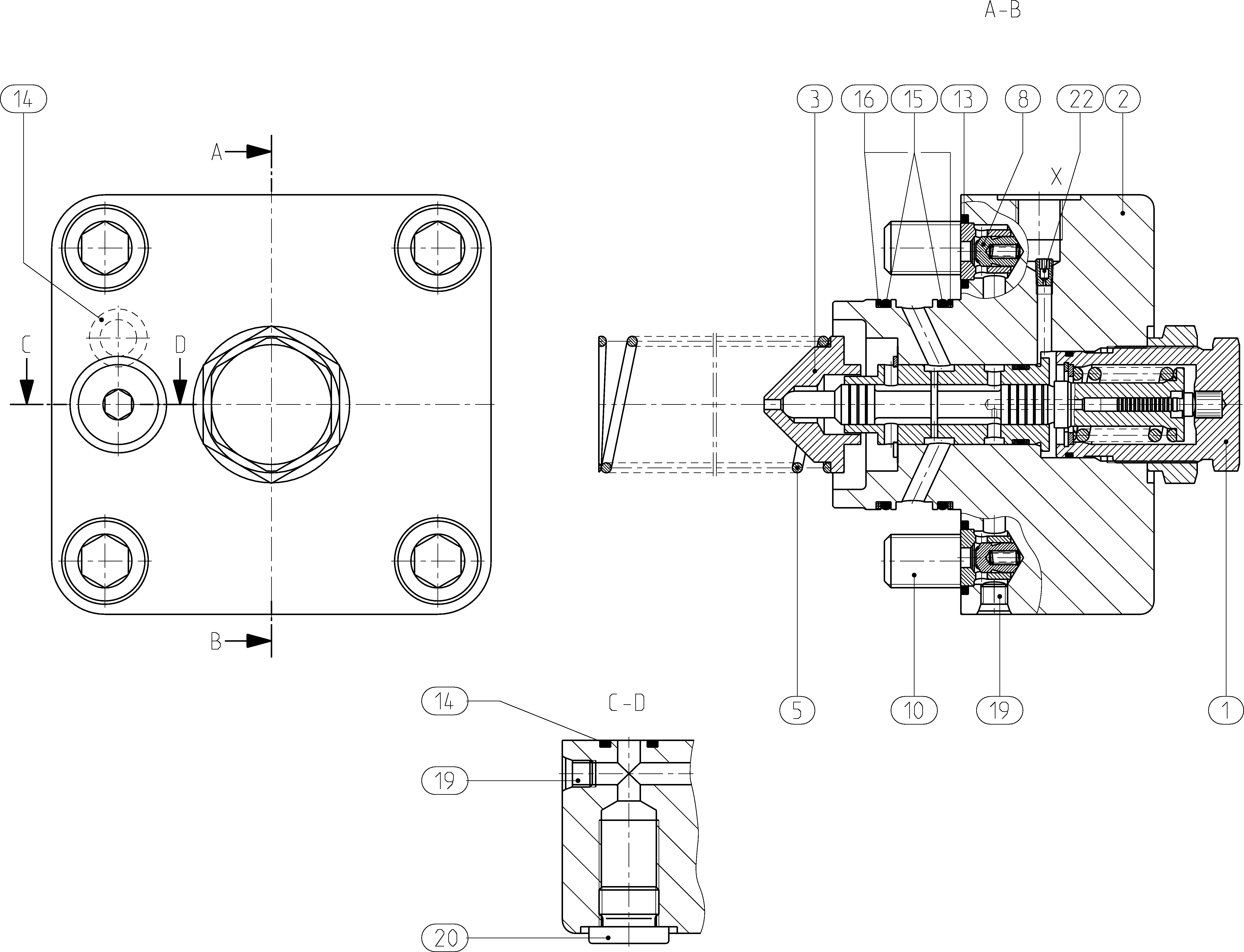

CONTROL PARTR902541185
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902557114 | VALVE INSERT | 1 | ||
| R910930293 | CONTROL HOUSING | 1 | ||
| R910930294 | SPRING DISK | 1 | ||
| R910930286 | SPRING | 1 | ||
| R910974764 | HY-CHECK VALVE | 2 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515574 | O-RINGD | 2 | ||
| R910518336 | O-RINGD | 4 | ||
| R910930814 | O-RINGD | 2 | ||
| R910927882 | BACKUP RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156651 | SCREW PLUGD | 1 |
