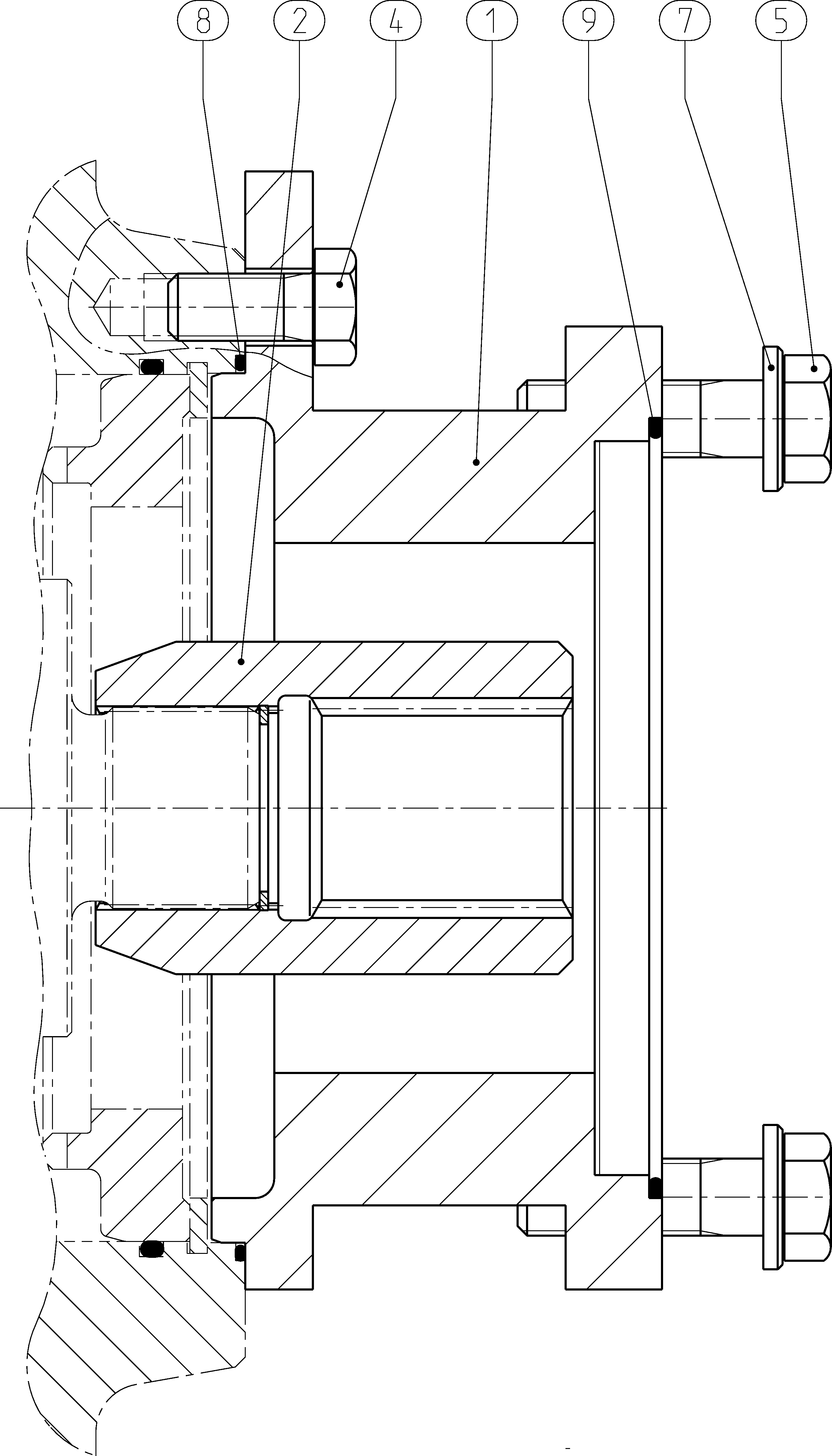

Assembly
ATTACHMENT KITR902541196
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902469408 | INTERMEDIATE FLANGE | 1 | ||
| R902542480 | SPLINED COUPLING | 1 | ||
| R910149373 | HEXAGON SCREW | 4 | ||
| R910124133 | HEXAGON SCREW | 4 | ||
| R902650192 | WASHER | 4 | ||
| R902650969 | O-RINGD | 1 | ||
| R910976485 | O-RINGD | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902469408 | INTERMEDIATE FLANGE | 1 | ||
| R902542480 | SPLINED COUPLING | 1 | ||
| R910149373 | HEXAGON SCREW | 4 | ||
| R910124133 | HEXAGON SCREW | 4 | ||
| R902650192 | WASHER | 4 | ||
| R902650969 | O-RINGD | 1 | ||
| R910976485 | O-RINGD | 1 |
