Assembly

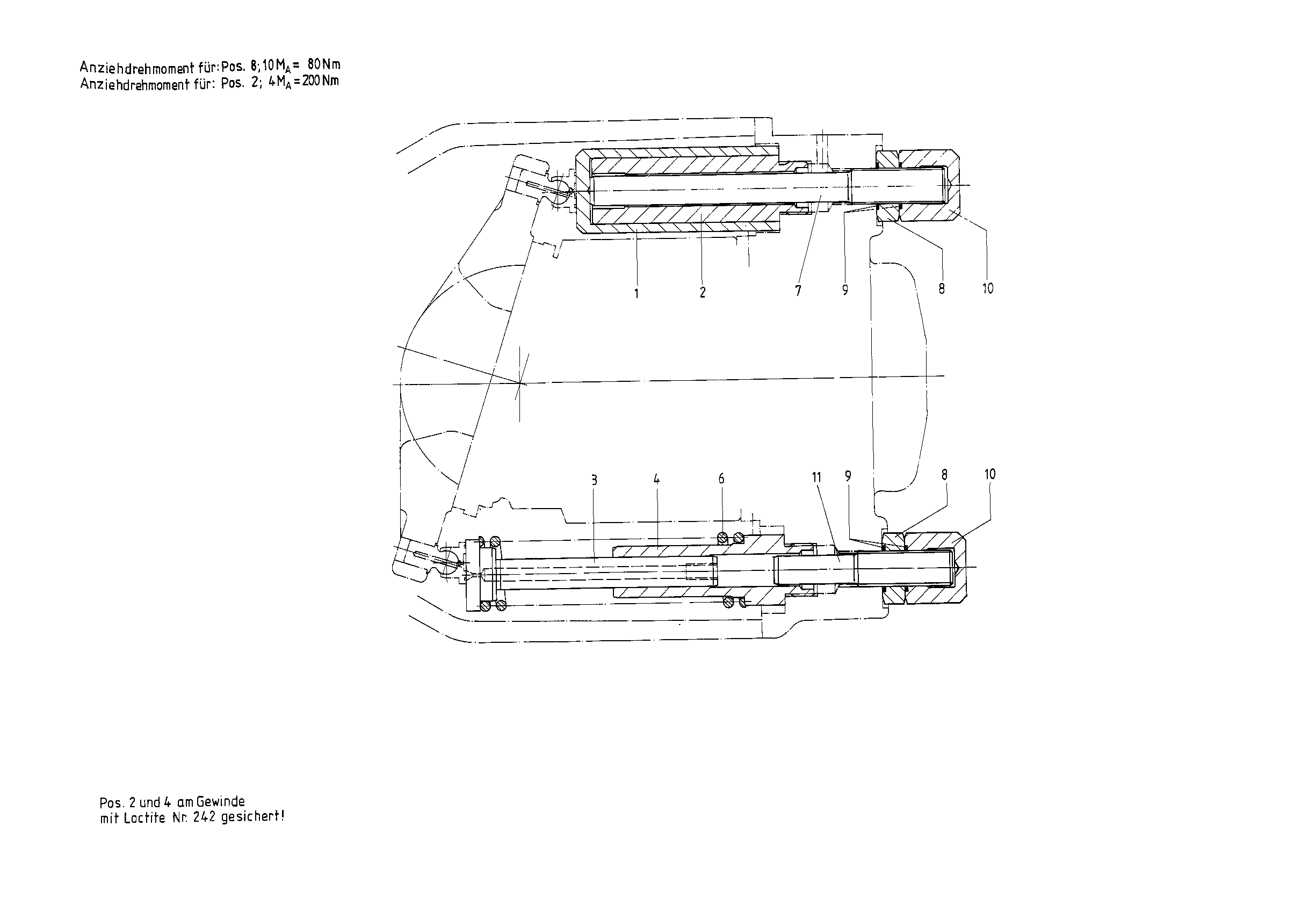

ADJUSTING PIECER902541946
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917585 | ADJUSTING PISTON | 1 | ||
| R902533336 | PISTON GUIDE | 1 | ||
| R910917588 | OPPOSED PISTON | 1 | ||
| R910917590 | PISTON GUIDE | 1 | ||
| R910917578 | SPRING | 1 | ||
| R902538234 | STOP SCREW | 1 | ||
| R902538202 | STOP SCREW | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917585 | ADJUSTING PISTON | 1 | ||
| R902533336 | PISTON GUIDE | 1 | ||
| R910917588 | OPPOSED PISTON | 1 | ||
| R910917590 | PISTON GUIDE | 1 | ||
| R910917578 | SPRING | 1 | ||
| R902538234 | STOP SCREW | 1 | ||
| R902538202 | STOP SCREW | 1 |
