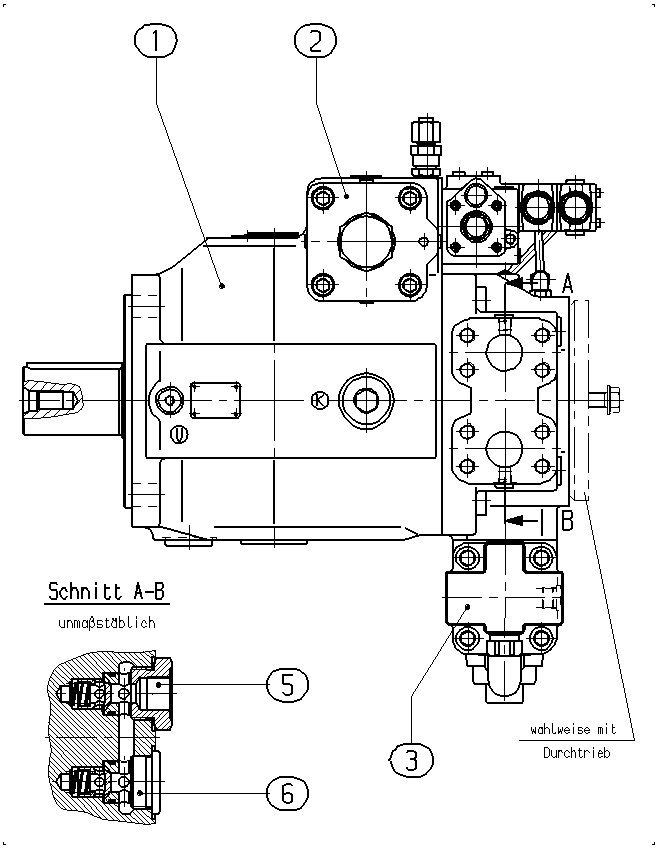

Assembly
AXIAL-PISTON PUMPR902542212
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902519521 | BASE UNIT Assembly parts list →L | 1 | ||
| R902542211 | CONTROL Assembly parts list →L | 1 | ||
| R910948831 | VALVE MOUNTING KIT | 1 | ||
| R910907074 | VALVE MOUNTING KIT | 1 | ||
| 9 | R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | |
| 61 | R902805709 | SHIPPING PROTECTION | 2 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 65 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R910795224 | PLUG | 1 | |
| 82 | R902602008 | SEAL SCREW | 2 |
