Assembly

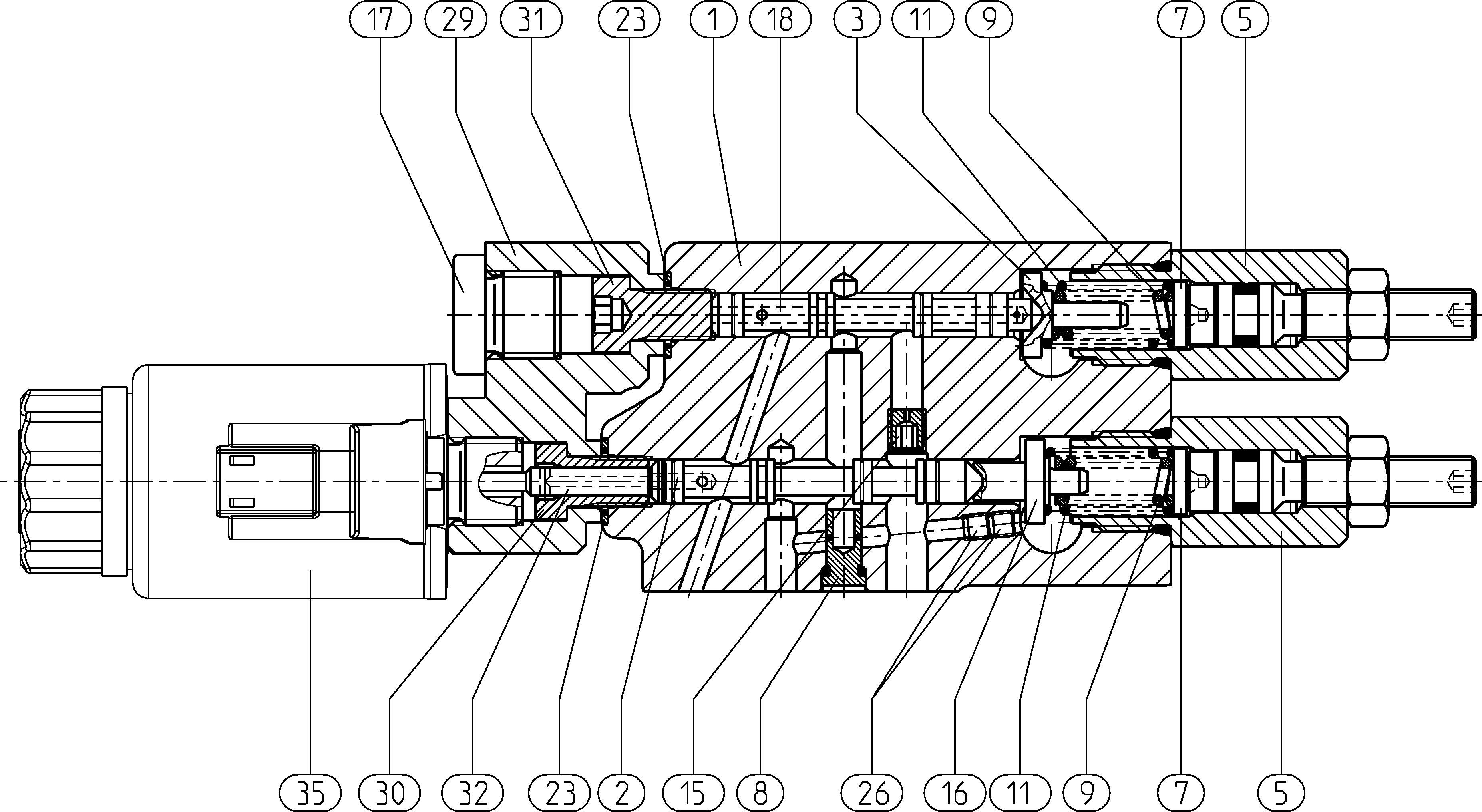

CONTROL VALVER902546074
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902447608 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902477202 | SERVO UNIT Assembly parts list →L | 2 | ||
| R910900362 | WASHER | 2 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 2 | ||
| R910924709 | COMPRESSION SPRING | 2 | ||
| R910922276 | NOZZLE | 1 | ||
| R910914826 | SPRING DISK | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R910913047 | VALVE SPOOL | 1 | ||
| R910642827 | BONDED SEAL RINGD | 2 | ||
| R910914741 | SETSCREW | 2 | ||
| R902431616 | DOUBLE ADAPTER | 1 | ||
| R902431618 | HOLLOW BOLTD | 1 | ||
| R902423290 | SCREW | 1 | ||
| R902431617 | CONNECTING ROD | 1 | ||
| R913042580 | PROPORTIONAL SOLENOID | 1 |
