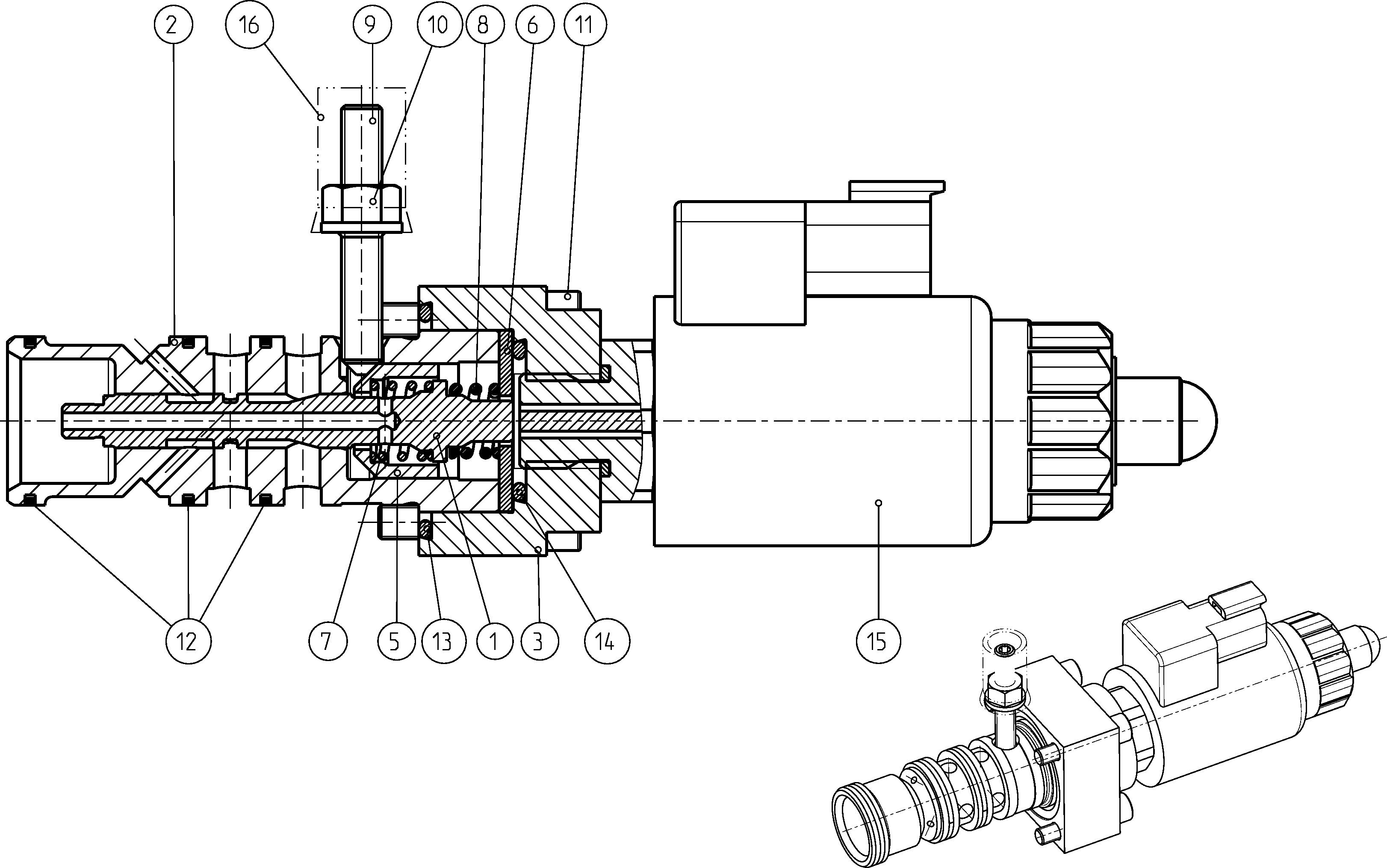

Assembly
CONTROL ELEMENTR902547356
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902471910 | VALVE SPOOL | 1 | ||
| R902471909 | CONTROL SLEEVE | 1 | ||
| R902568263 | INTERMEDIATE PIECE | 1 | ||
| R902471912 | ADJUSTING BUSHING | 1 | ||
| R902475410 | WASHER | 1 | ||
| R902468677 | COMPRESSION SPRING | 1 | ||
| R902471927 | COMPRESSION SPRING | 1 | ||
| R909154865 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R900003188 | SOCKET HEAD CAP SCREW | 4 | ||
| R902562584 | R-RING | 3 | ||
| R910973148 | O-RING | 1 | ||
| R910545155 | O-RING | 1 | ||
| R913041815 | PROPORTIONAL SOLENOID | 1 | ||
| R909831568 | SAFETY CAP | 1 |
