Assembly

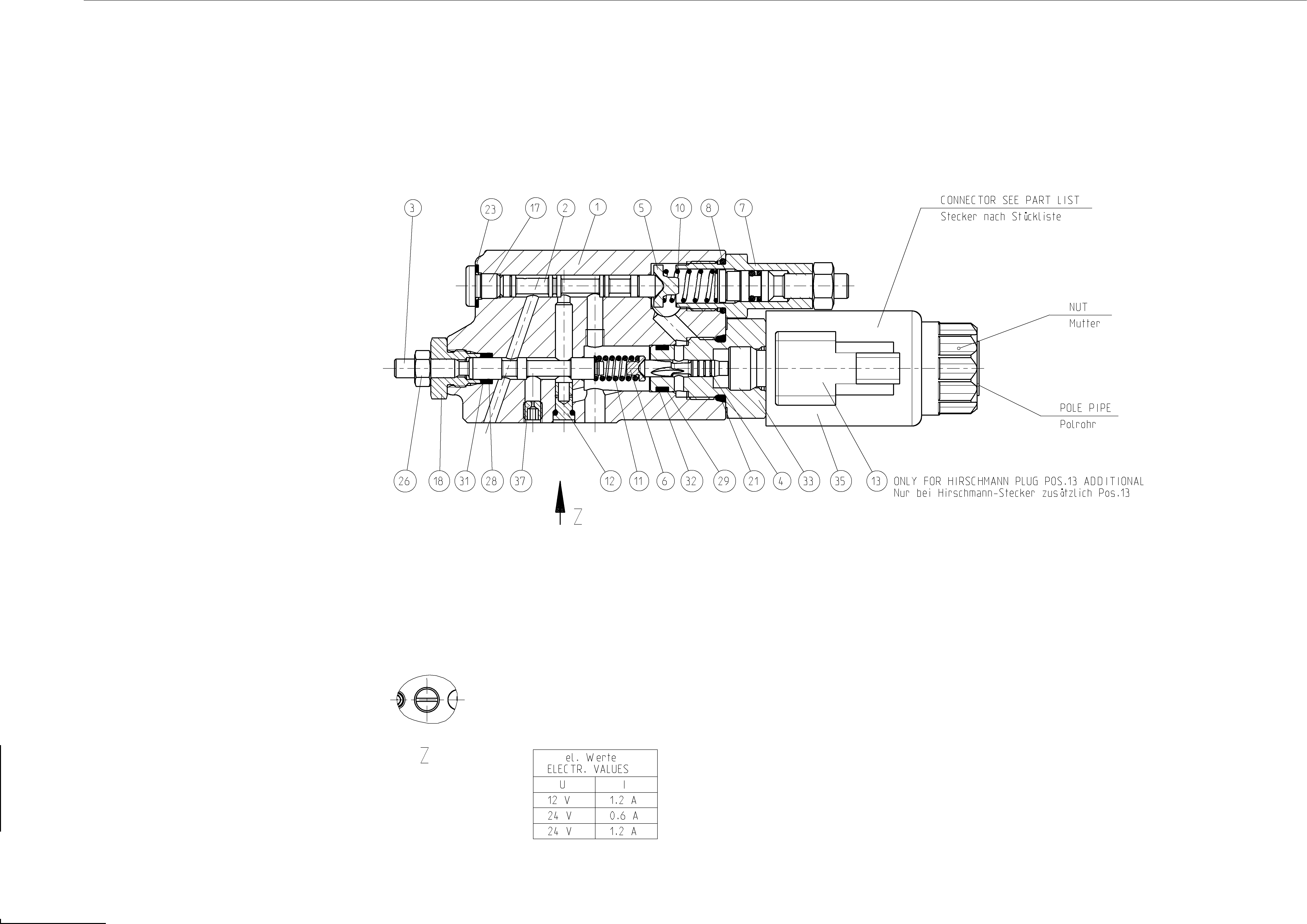

CONTROL VALVER902547615
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902477398 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R902477396 | SETTING PISTON | 1 | ||
| R902545825 | CONTROL PISTON | 1 | ||
| 5 | R902531922 | SPRING DISK | 1 | |
| R902460954 | SPRING DISK | 1 | ||
| R902533209 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902531918 | COMPRESSION SPRING | 1 | ||
| 11 | R902417341 | COMPRESSION SPRING | 1 | |
| 12 | R902451582 | ORIFICE Assembly parts list →L | 1 | |
| 13 | R900183135 | PROTECTIVE CAP | 1 | |
| 17 | R910933812 | SCREW PLUG | 1 | |
| R902477397 | SCREW PLUG | 1 | ||
| 21 | R910080594 | O-RING | 1 | |
| R910642827 | BONDED SEAL RING | 1 | ||
| R902650623 | HEXAGON NUT | 1 | ||
| R913022398 | O-RING | 1 | ||
| R902650236 | O-RING | 1 | ||
| 31 | R902479685 | BACKUP RING | 1 | |
| R902650630 | BACKUP RING | 1 | ||
| R902545809 | PISTON GUIDE | 1 | ||
| R913040989 | PROPORTIONAL SOLENOID | 1 | ||
| R910922276 | NOZZLE | 1 |
