Assembly

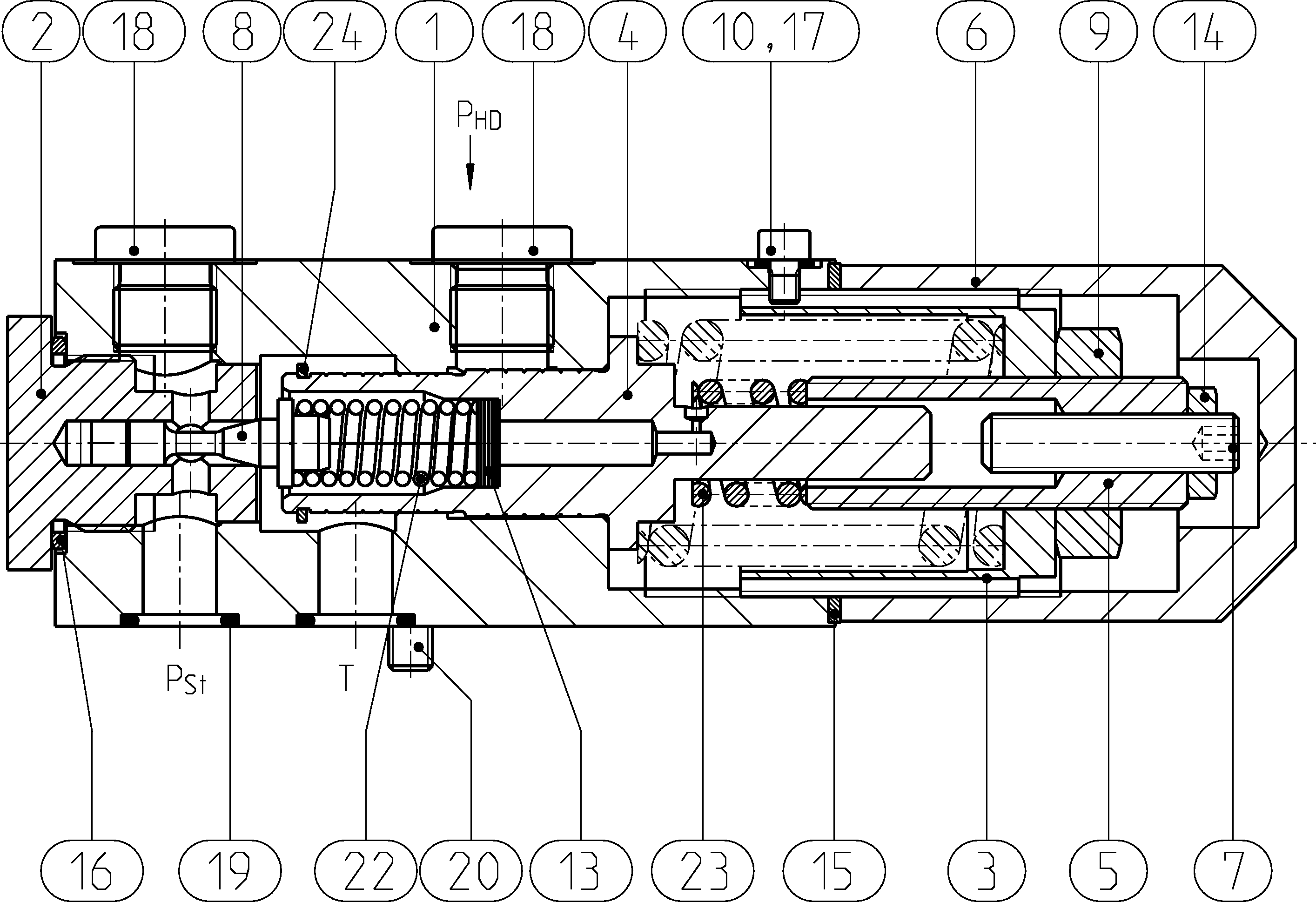

PERFORMANCE LIMIT VALVER902547740
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902539303 | VALVE HOUSING | 1 | ||
| R910443476 | PISTON HOUSING | 1 | ||
| R910443492 | THREADED FITTING | 1 | ||
| R902539271 | DIFFERENTIAL PISTON | 1 | ||
| R910960388 | CONTROL SLEEVE | 1 | ||
| R902539272 | SEALING CAP | 1 | ||
| R909083497 | SETSCREW | 1 | ||
| R902537453 | VALVE CONE | 1 | ||
| R910127108 | HEXAGON NUT | 1 | ||
| R910119512 | SOCKET HEAD CAP SCREW | 1 | ||
| R910757489 | SHIM RING | 6 | ||
| R910125903 | HEXAGON NUT | 1 | ||
| R910907488 | BACKUP RINGD | 1 | ||
| R910100323 | SEAL RINGD | 1 | ||
| R910118435 | SEAL RINGD | 1 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R910080543 | O-RINGD | 2 | ||
| R910109371 | SOCKET HEAD CAP SCREW | 2 | ||
| R902543931 | SPRING | 1 | ||
| R910443743 | COMPRESSION SPRING | 1 | ||
| R913046891 | SNAP RING | 1 |
