Assembly

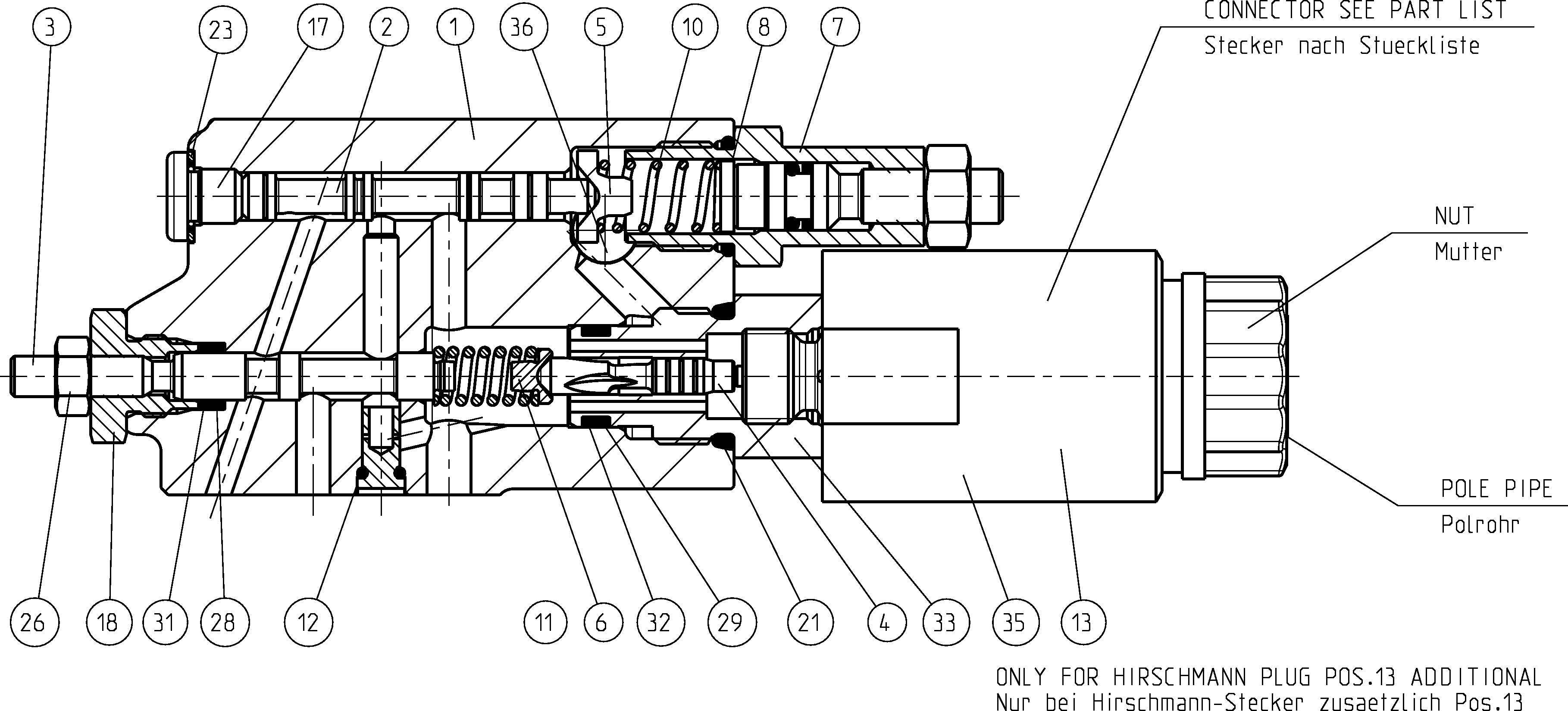

CONTROL VALVER902548621
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902477398 | VALVE HOUSING | 1 | ||
| R902518770 | VALVE SPOOL | 1 | ||
| R902485336 | SETTING PISTON | 1 | ||
| R902430439 | CONTROL PISTON | 1 | ||
| R902466431 | SPRING DISK | 1 | ||
| R902460954 | SPRING DISK | 1 | ||
| R902533209 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902445700 | COMPRESSION SPRING | 1 | ||
| R909436395 | COMPRESSION SPRING | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910933812 | SCREW PLUG | 1 | ||
| R902477397 | SCREW PLUG | 1 | ||
| R910080594 | O-RING | 1 | ||
| R910642827 | BONDED SEAL RING | 1 | ||
| R902650623 | HEXAGON NUT | 1 | ||
| R913022398 | O-RING | 1 | ||
| R902650236 | O-RING | 1 | ||
| R902479685 | BACKUP RING | 1 | ||
| R902650630 | BACKUP RING | 1 | ||
| R902466771 | PISTON GUIDE | 1 | ||
| R913041159 | PROPORTIONAL SOLENOID | 1 | ||
| R910764647 | SCREW PLUG | 1 |
