Assembly

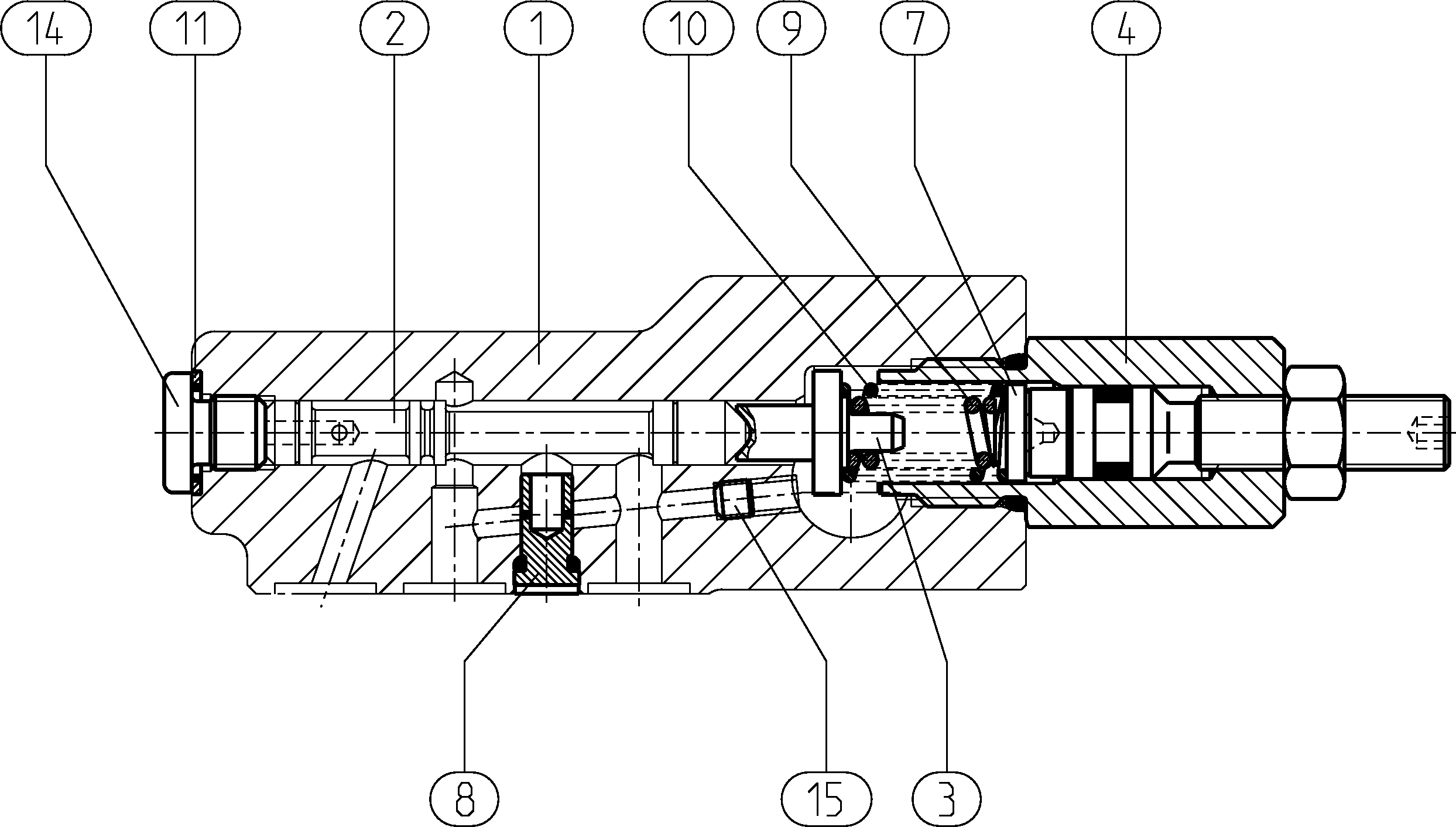

CONTROL VALVER902548627
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902548647 | VALVE HOUSING | 1 | ||
| R910991469 | VALVE SPOOL | 1 | ||
| R910914826 | SPRING DISK | 1 | ||
| R902477202 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RINGD | 1 | ||
| R910933812 | SCREW PLUG | 1 | ||
| R910914741 | SETSCREW | 1 |
