Assembly

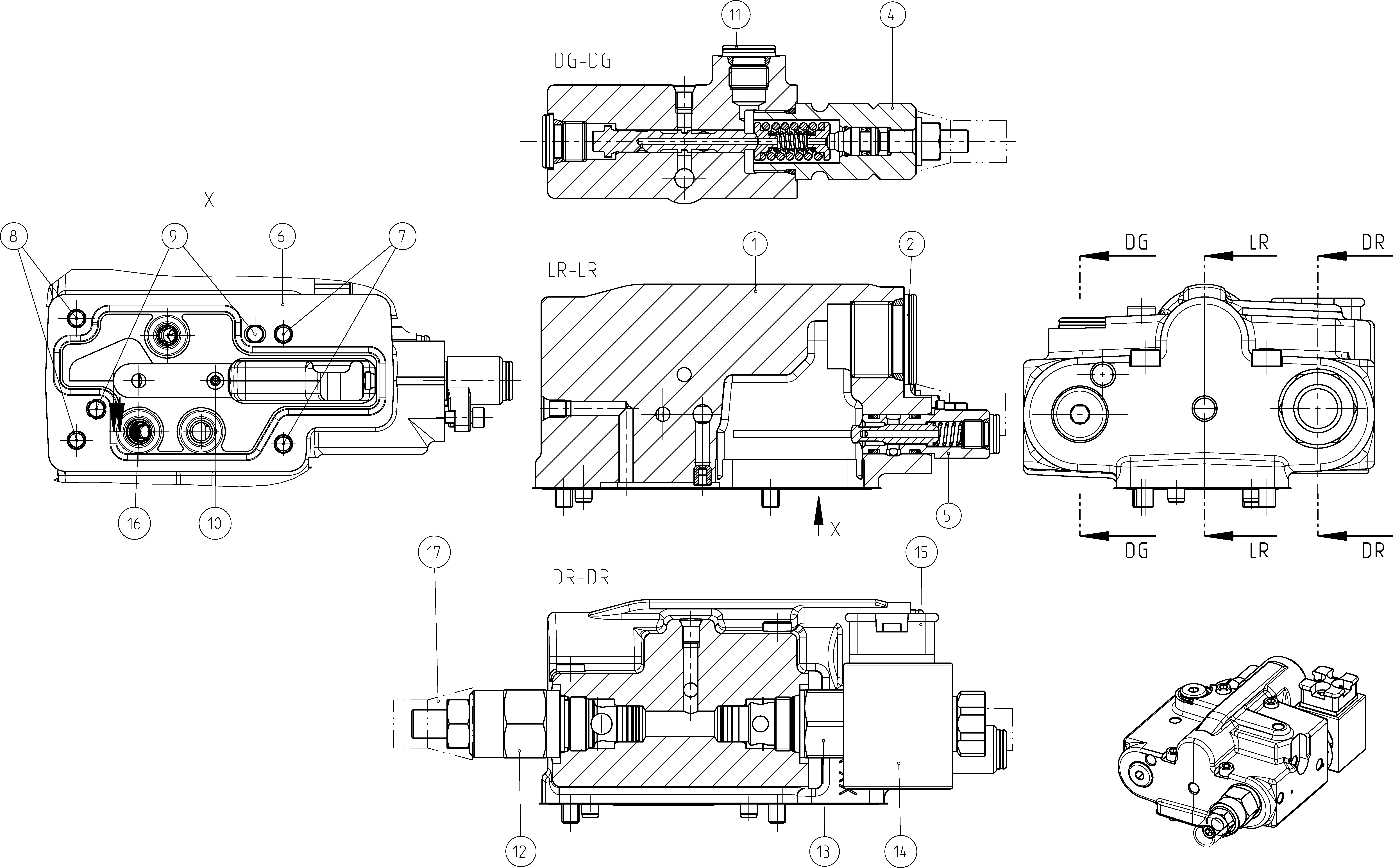

CONTROL VALVER902548709
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902548707 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902601712 | SCREW PLUG | 1 | ||
| R902468061 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902463255 | SWIVEL STOP | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 2 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 2 | ||
| R900716536 | STRAIGHT PIN | 2 | ||
| R909157343 | NOZZLE | 1 | ||
| R909831482 | SCREW PLUG | 1 | ||
| R901113601 | SCREW-IN CARTRIDGE VALVE | 1 | ||
| R901091152 | SCREW-IN CARTRIDGE VALVE | 1 | ||
| R901083065 | SOLENOID COIL | 1 | ||
| R900183135 | PROTECTIVE CAP | 1 | ||
| R902603777 | FILTER | 1 | ||
| R909154495 | SAFETY CAP | 1 |
