Assembly

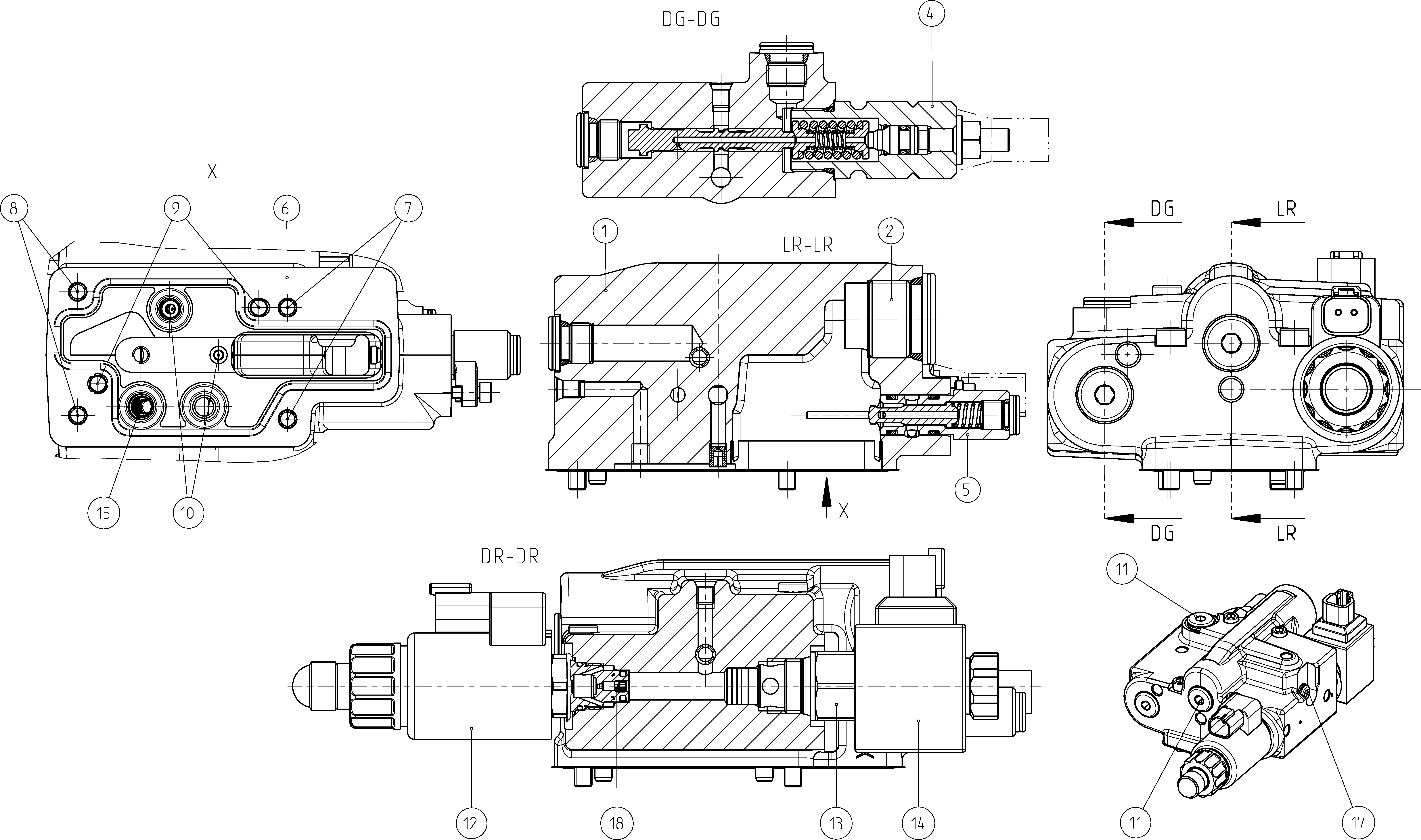

CONTROL VALVER902551578
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485119 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902601712 | SCREW PLUG | 1 | ||
| R902541746 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902463255 | SWIVEL STOP | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 2 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 2 | ||
| R900716536 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 2 | ||
| R909831482 | SCREW PLUG | 2 | ||
| R902602749 | PRESSURE RELIEF VALVE | 1 | ||
| R901091150 | SCREW-IN CARTRIDGE VALVE | 1 | ||
| R902603254 | COIL | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902601807 | SCREW PLUG | 1 | ||
| R910921703 | NOZZLE | 1 |
