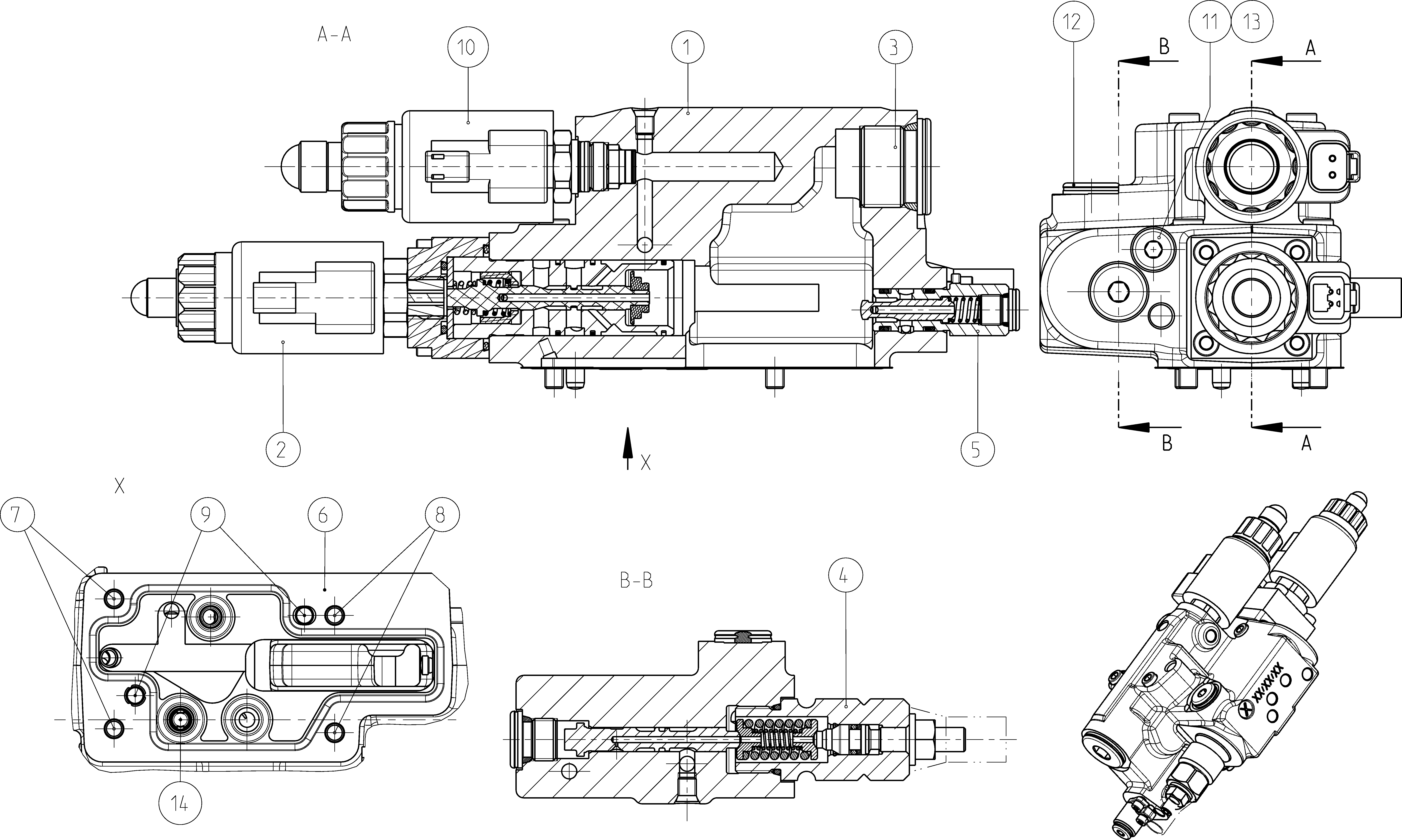

Assembly
CONTROL VALVER902554278
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483467 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902535817 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902601712 | SCREW PLUG | 1 | ||
| R902541746 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902463255 | SWIVEL STOP | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 2 | ||
| R910979797 | SOCKET HEAD CAP SCREW | 2 | ||
| R900716536 | STRAIGHT PIN | 2 | ||
| R901026207 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R902602216 | SCREW PLUG | 1 | ||
| R909831482 | SCREW PLUG | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R902603777 | FILTER | 1 |
