Assembly

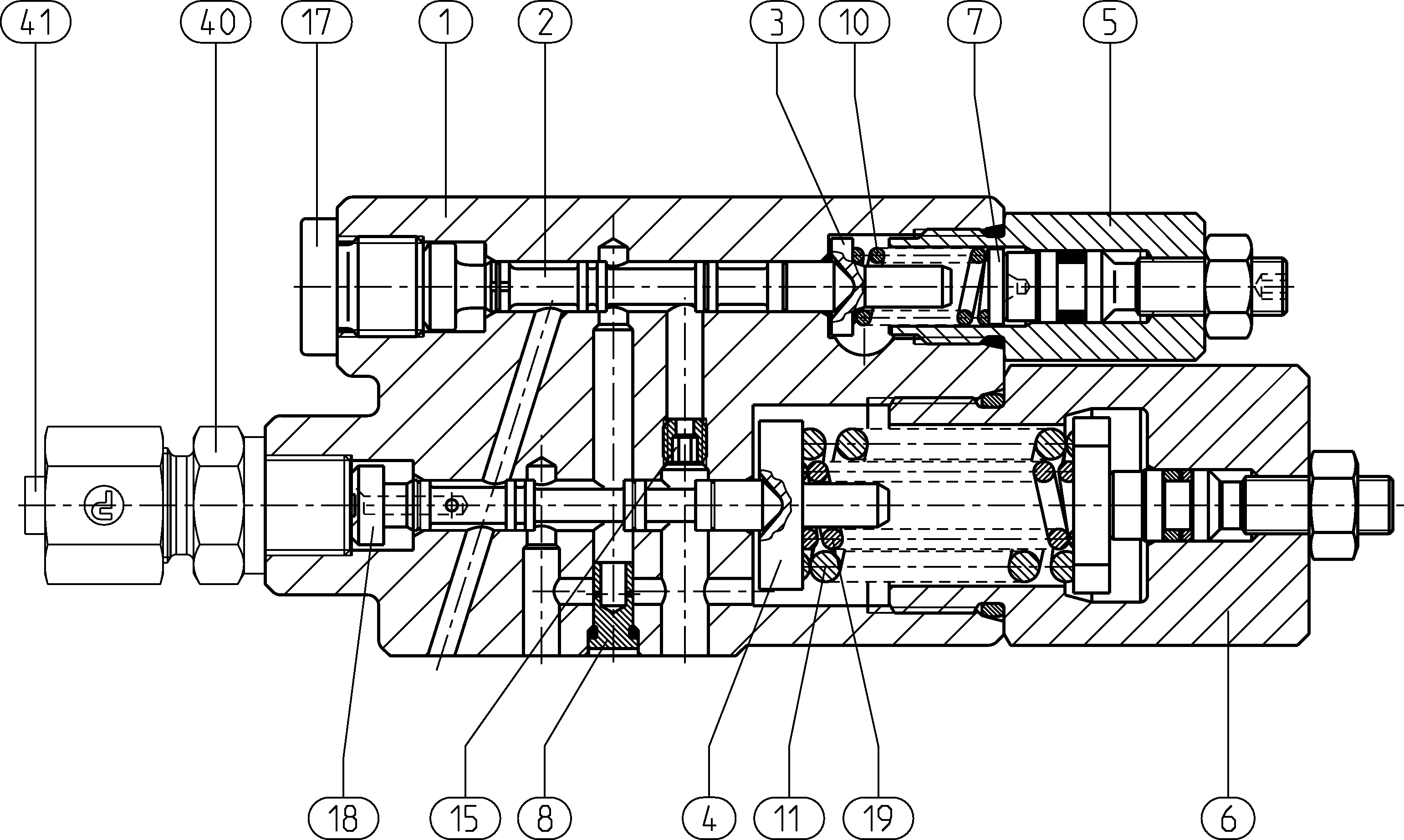

CONTROL VALVER902556062
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466252 | VALVE HOUSING | 1 | ||
| R902466253 | VALVE SPOOL | 1 | ||
| R910920595 | SPRING DISK | 1 | ||
| R902447810 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902456405 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910920596 | COMPRESSION SPRING | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R902496858 | NOZZLE | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R902447807 | VALVE SPOOL | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 | ||
| R910960552 | MALE CONNECTOR | 1 | ||
| R913002570 | SEALING CONE | 1 |
