Assembly

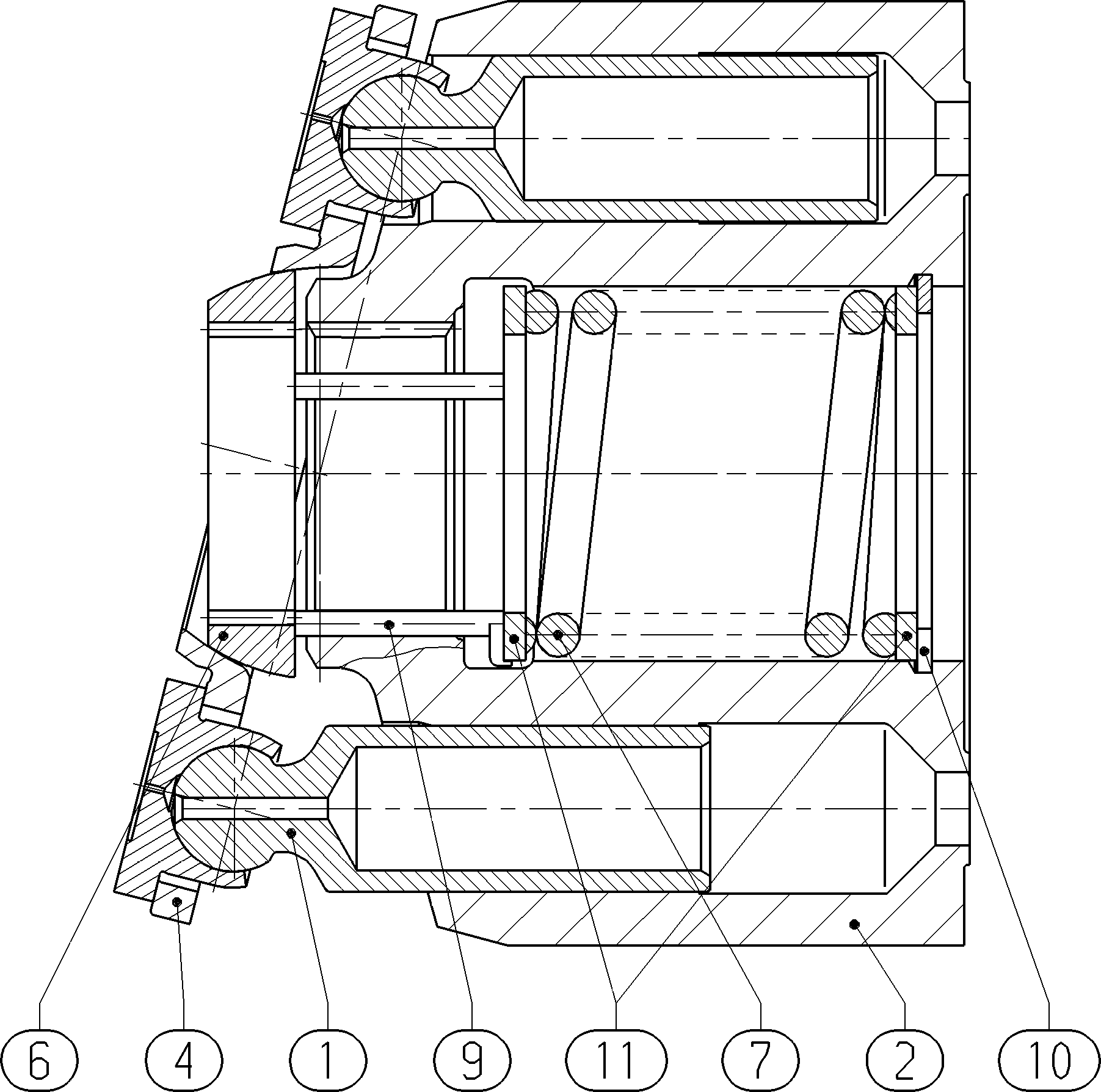

ROTARY GROUPR902556799
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559745 | PISTON PAD | 9 | ||
| R902557261 | CYLINDER | 1 | ||
| R902551332 | RETAINING PLATE | 1 | ||
| R902557279 | RETAINING BALL | 1 | ||
| R902124877 | COMPRESSION SPRING | 1 | ||
| R910996051 | PRESSURE PIN | 3 | ||
| R910918189 | RETAINING RING | 1 | ||
| R902551334 | WASHER | 1 |
