Assembly

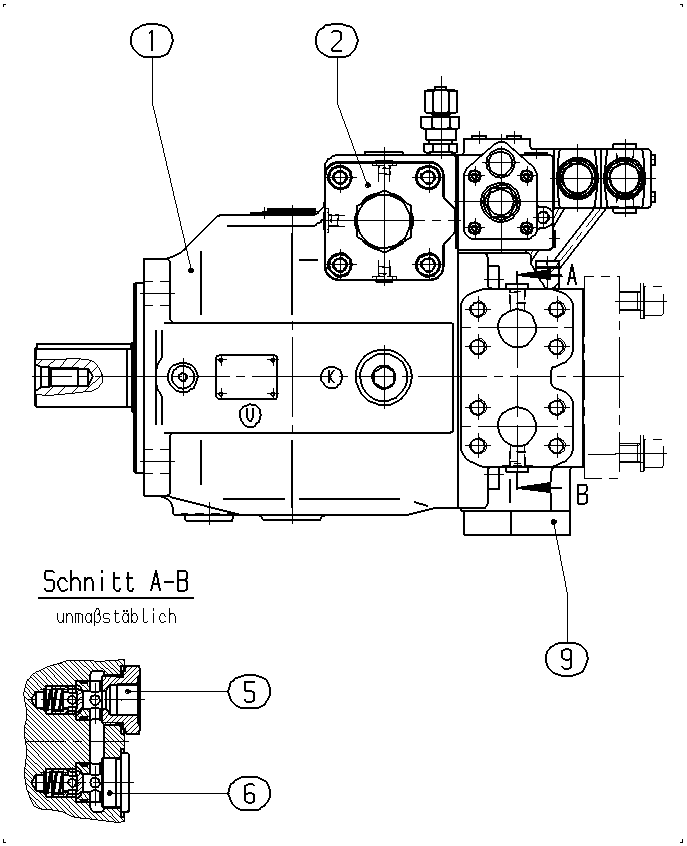

AXIAL-PISTON PUMPR902556907
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902557125 | BASE UNIT Assembly parts list →L | 1 | ||
| R902436472 | CONTROL Assembly parts list →L | 1 | ||
| R910906960 | VALVE MOUNTING KIT | 1 | ||
| R910906959 | VALVE MOUNTING KIT | 1 | ||
| R902412337 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| R902602013 | SEAL SCREW | 1 | ||
| 64 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R910723126 | PLUG | 1 | |
| 82 | R902602008 | SEAL SCREW | 2 |
