Assembly

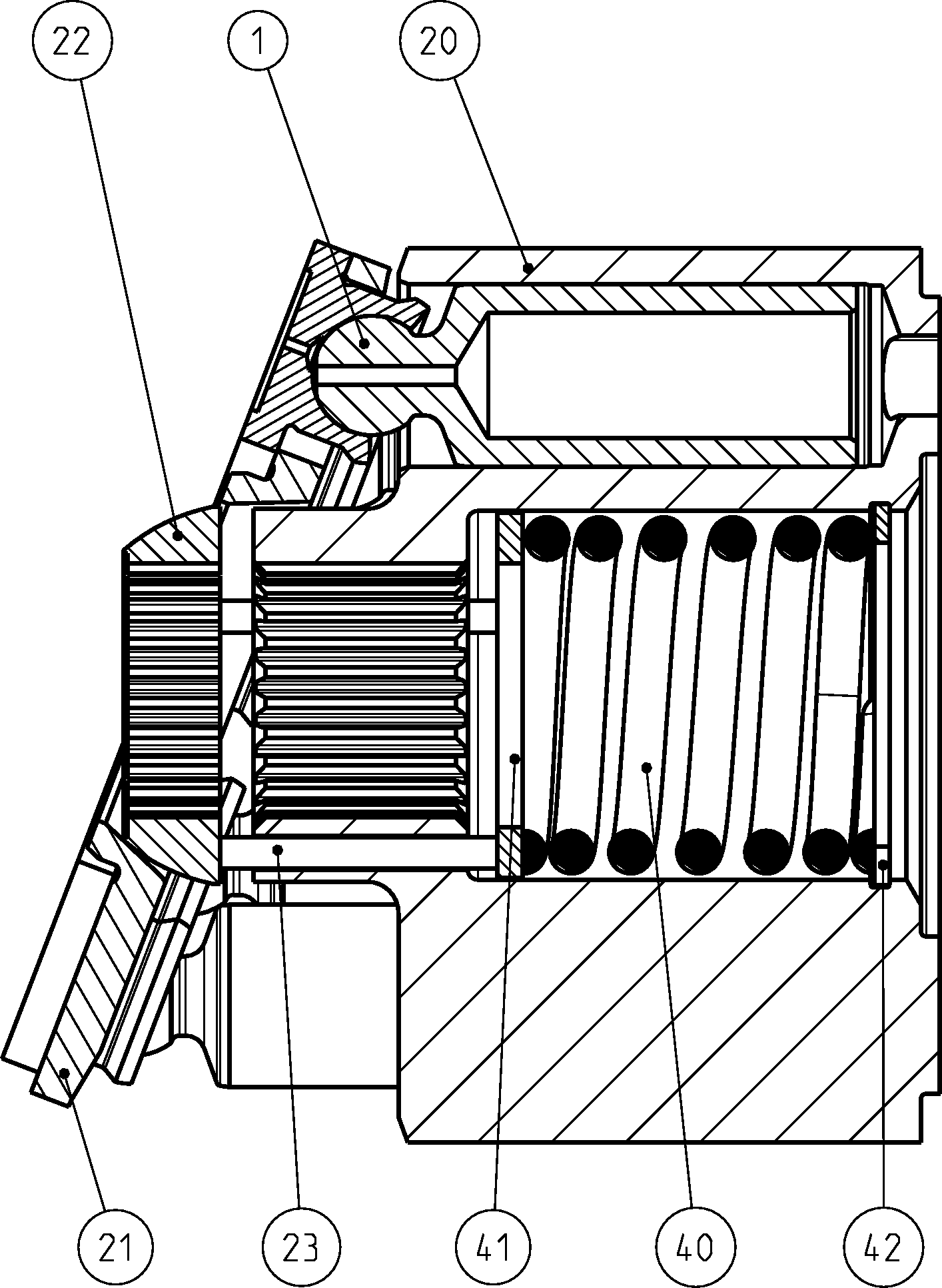

ROTARY GROUPR902558297
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902537522 | PISTON PAD | 9 | ||
| R902556449 | CYLINDER | 1 | ||
| R902537695 | RETAINING PLATE | 1 | ||
| R902537696 | RETAINING BALL | 1 | ||
| R902548064 | PRESSURE PIN | 3 | ||
| R902537707 | COMPRESSION SPRING | 1 | ||
| R902453823 | SUPPORTING DISC | 1 | ||
| R909830721 | V-RING | 1 |
