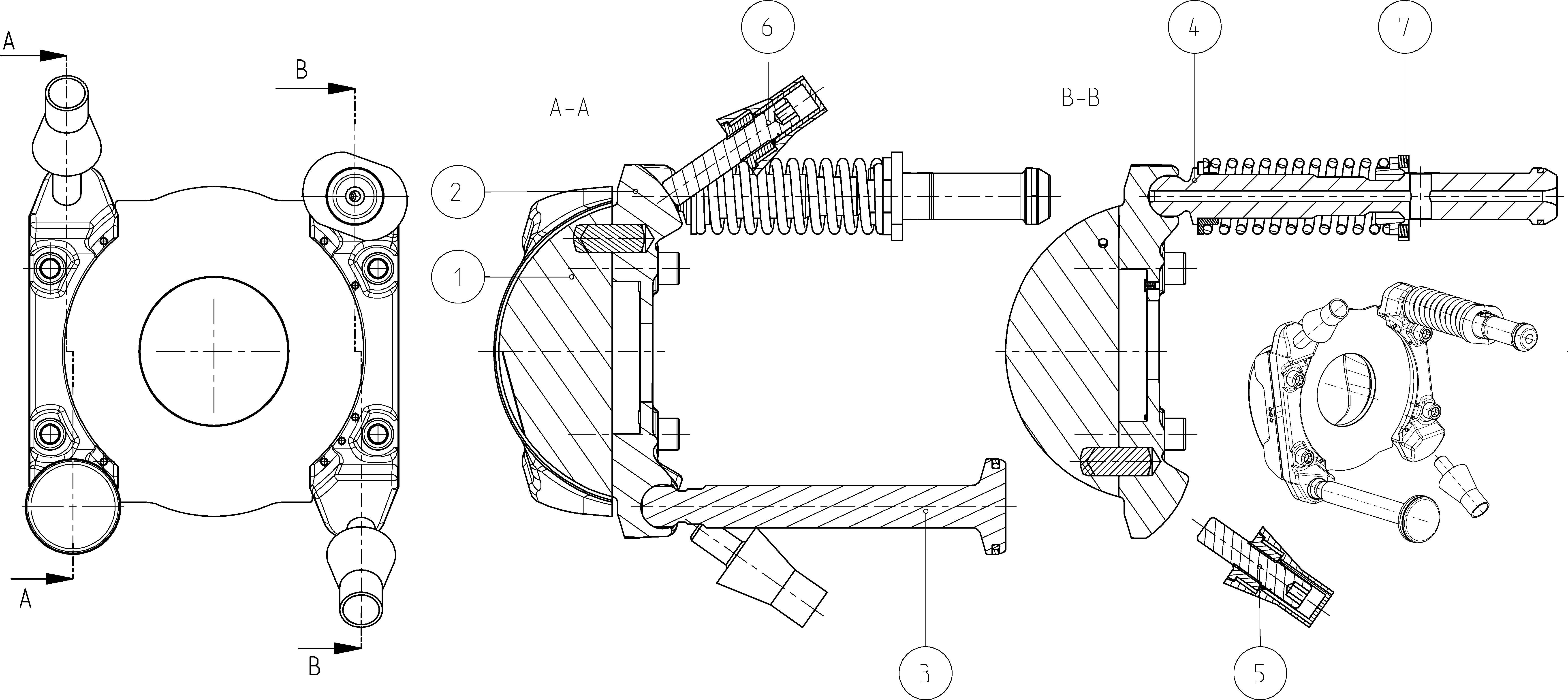

Assembly
CONTROLR902560868
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902560879 | SWASH PLATE | 1 | ||
| R902560869 | SEGMENT | 1 | ||
| R902560872 | POSITIONING PISTON | 1 | ||
| R902560874 | OPPOSED PISTON | 1 | ||
| R902484634 | SETSCREW | 1 | ||
| R902484637 | SETSCREW | 1 | ||
| R902487202 | CENTERING TAB | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902560879 | SWASH PLATE | 1 | ||
| R902560869 | SEGMENT | 1 | ||
| R902560872 | POSITIONING PISTON | 1 | ||
| R902560874 | OPPOSED PISTON | 1 | ||
| R902484634 | SETSCREW | 1 | ||
| R902484637 | SETSCREW | 1 | ||
| R902487202 | CENTERING TAB | 1 |
