Assembly

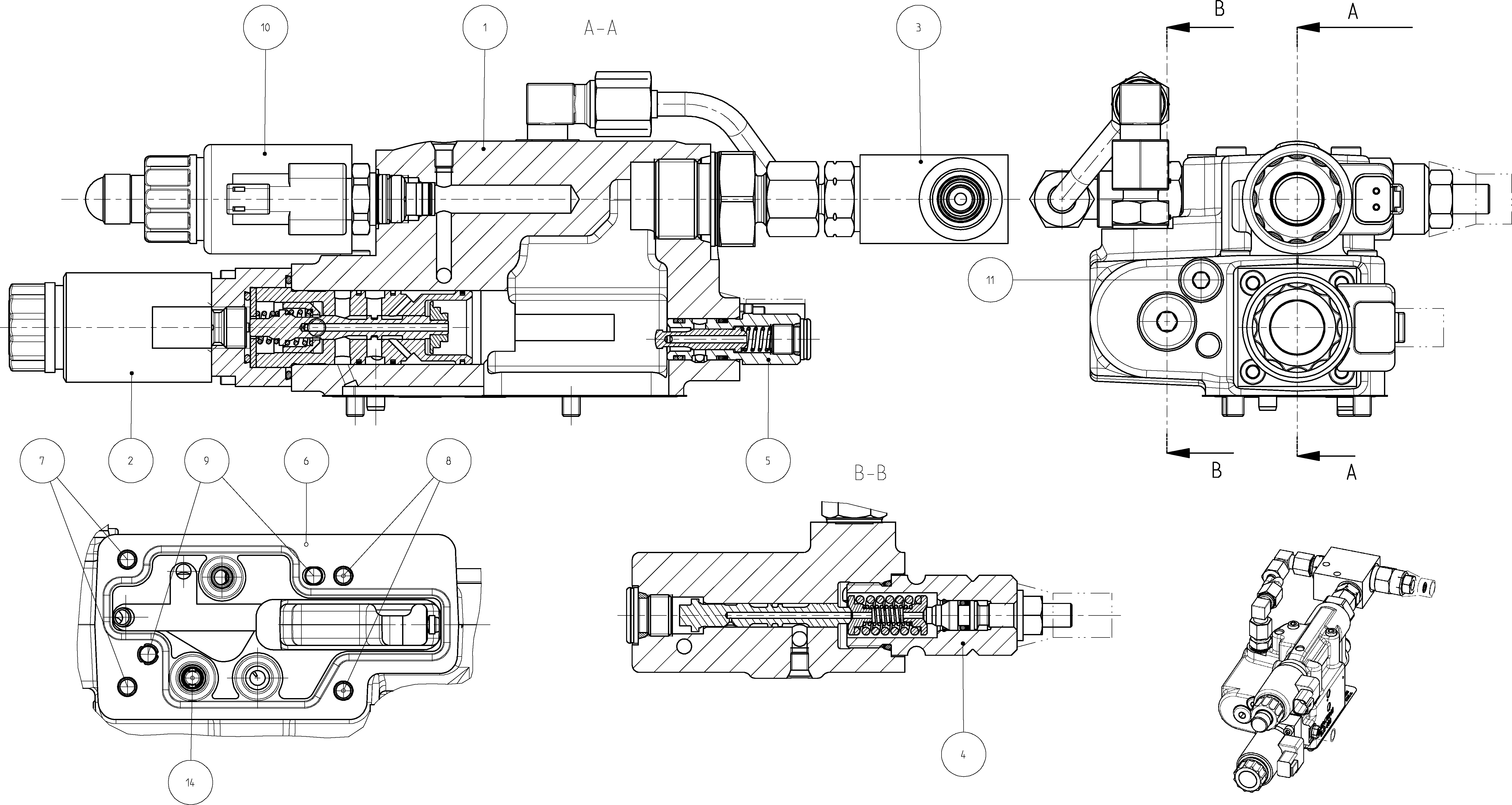

CONTROL VALVER902561923
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483467 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902479931 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902561548 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R902541746 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902463255 | SWIVEL STOP | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 2 | ||
| R910979797 | SOCKET HEAD CAP SCREW | 2 | ||
| R900716536 | STRAIGHT PIN | 2 | ||
| R901188580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R902602216 | SCREW PLUG | 1 | ||
| R902239375 | FILTER | 1 |
