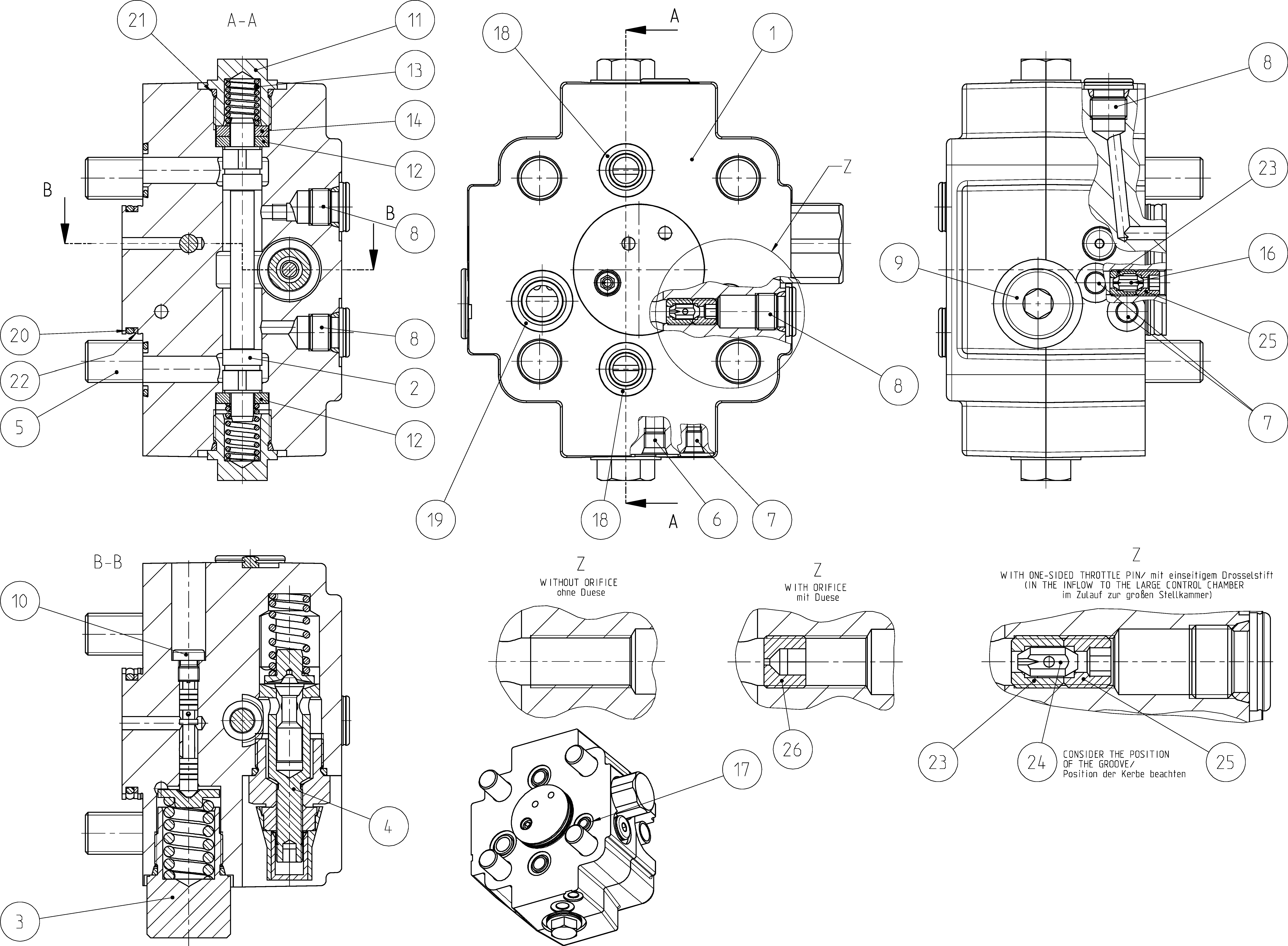

Assembly
COVERR902563746
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902550889 | COVER | 1 | ||
| R902561580 | FLUSHING PISTON | 1 | ||
| R910988553 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902215659 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909083139 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831482 | SCREW PLUG | 4 | ||
| R902601710 | SCREW PLUG | 1 | ||
| R909156863 | SCREW PLUG | 1 | ||
| R902261835 | SCREW PLUG | 2 | ||
| R909431642 | WASHER | 2 | ||
| R902261850 | COMPRESSION SPRING | 2 | ||
| R909651166 | THROTTLE PIN | 1 | ||
| R910518336 | O-RING | 1 | ||
| R910302139 | O-RING | 2 | ||
| R910545155 | O-RING | 1 | ||
| R910929855 | O-RING | 1 | ||
| R902600738 | O-RING | 2 | ||
| R910929791 | BACKUP RING | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400264 | THROTTLE SCREW | 1 |
