Assembly

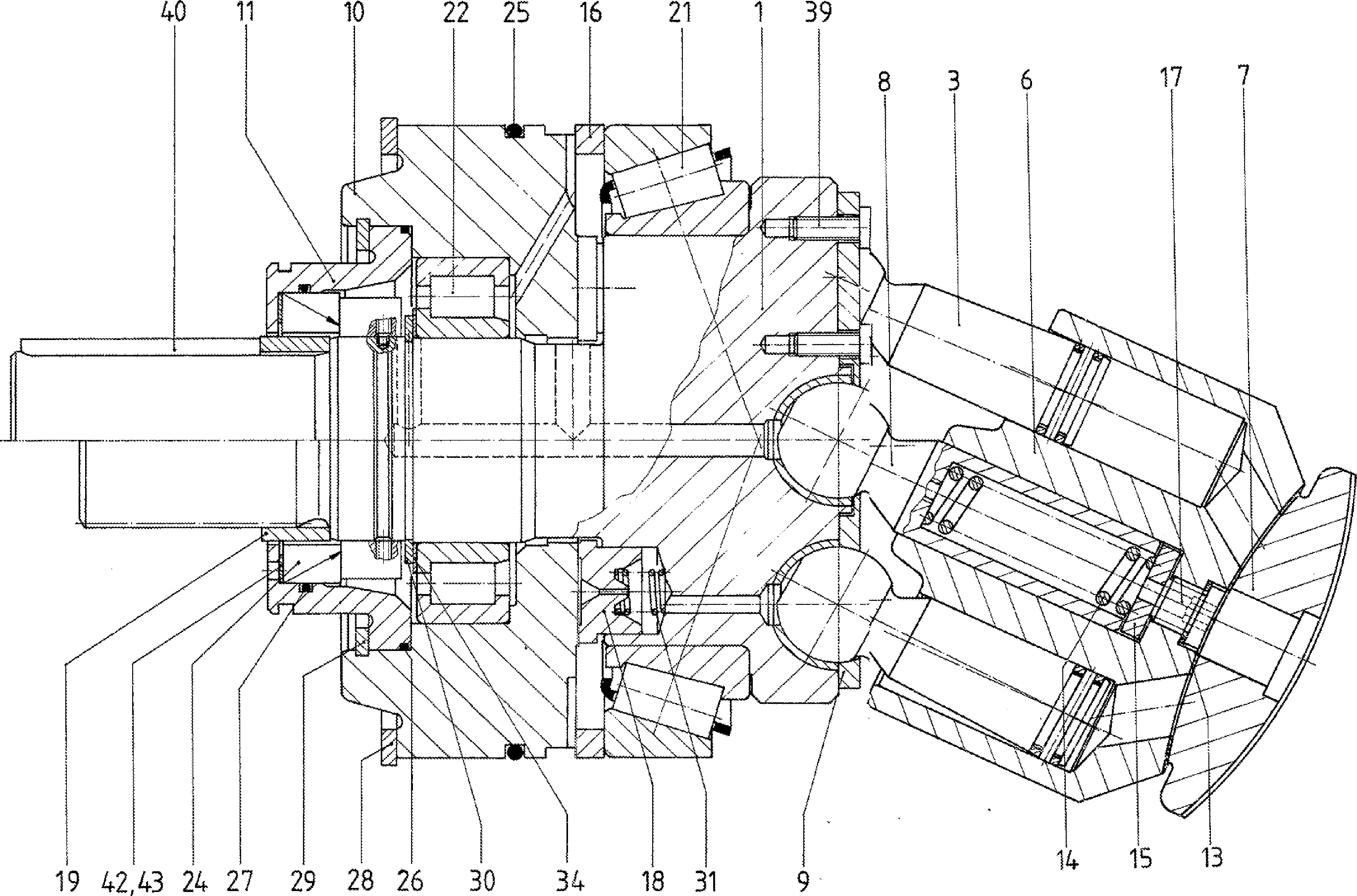

ROTARY GROUPR902564453
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902564454 | DRIVE FLANGE | 1 | ||
| R902567198 | PISTON | 7 | ||
| R902567616 | CYLINDER | 1 | ||
| R902538786 | CONTROL LENS | 1 | ||
| R902537508 | THRUST JOURNAL | 1 | ||
| R902556372 | RETAINING PLATE | 1 | ||
| R902453220 | BEARING RING | 1 | ||
| R910926665 | SEALING FLANGE | 1 | ||
| R910934208 | SHIM RING | 1 | ||
| R910934496 | COMPRESSION SPRING | 1 | ||
| R910934216 | WASHER | 1 | ||
| R902416439 | TUNING KIT | 1 | ||
| R910934224 | SPACER SCREW | 1 | ||
| R910714798 | PAD | 7 | ||
| R910926666 | SPACER RING | 1 | ||
| R910926660 | TAPERED-ROLLER BEARING | 1 | ||
| R910742481 | CYL. ROLLER BEARING | 1 | ||
| R910915310 | SLIDE RING SEALD | 1 | ||
| R910625051 | O-RINGD | 1 | ||
| R910976485 | O-RINGD | 1 | ||
| R910905117 | O-RING | 1 | ||
| R910127698 | RETAINING RING | 1 | ||
| R910519138 | RETAINING RING | 1 | ||
| R910188026 | RETAINING RING | 1 | ||
| R910908452 | COMPRESSION SPRING | 7 | ||
| R910194468 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910105686 | SHIM RING | 1 | ||
| R910380512 | SHIM RING | 2 |
