Assembly

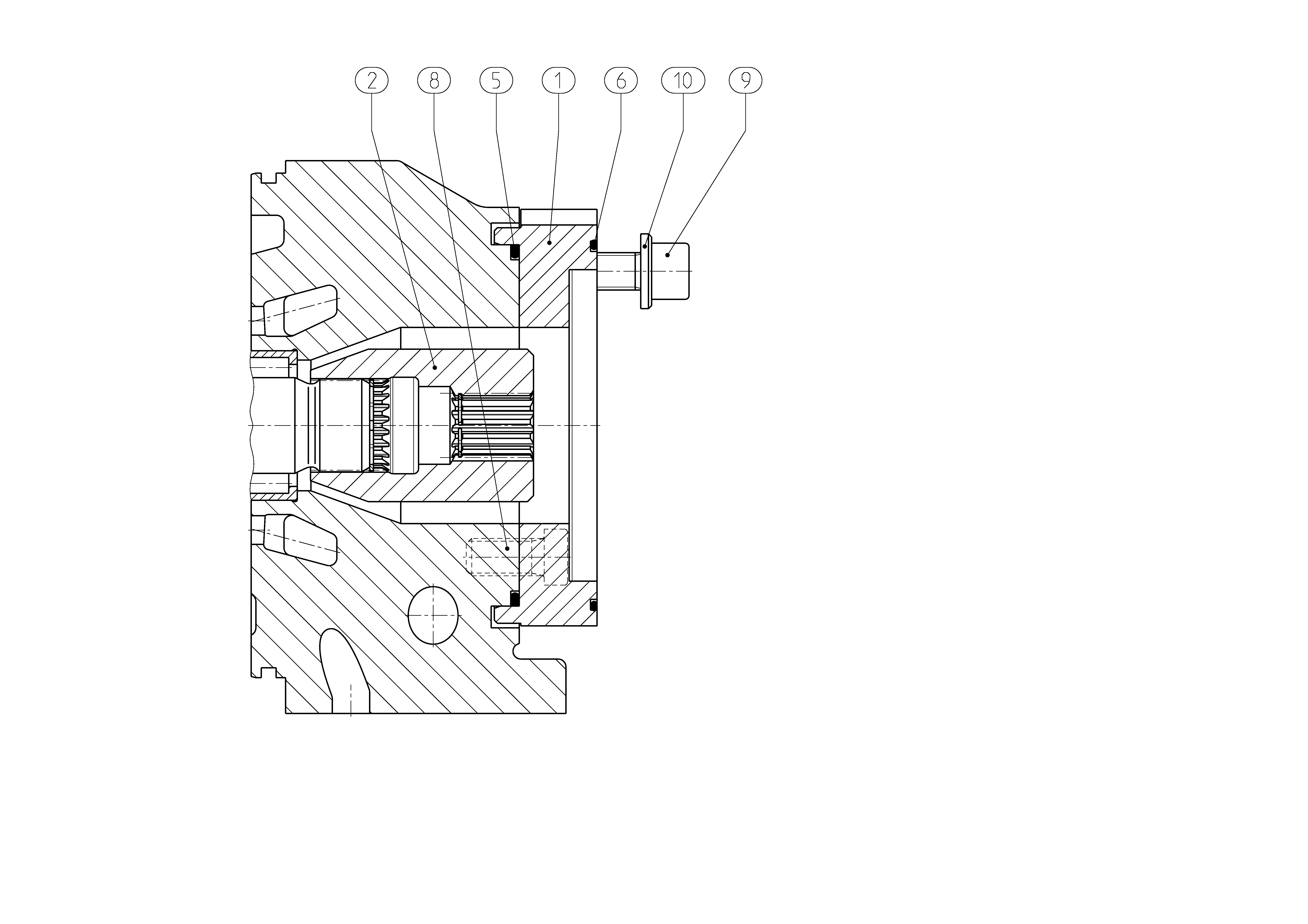

ATTACHMENT KITR902566875
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910910214 | INTERMEDIATE FLANGE | 1 | |
| R902549114 | SPLINED COUPLING | 1 | ||
| R910904807 | O-RINGD | 1 | ||
| R902600578 | O-RINGD | 1 | ||
| R910714917 | SOCKET HEAD CAP SCREW | 4 | ||
| 9 | R910109789 | SOCKET HEAD CAP SCREW | 2 | |
| 10 | R902650190 | WASHER | 2 |
