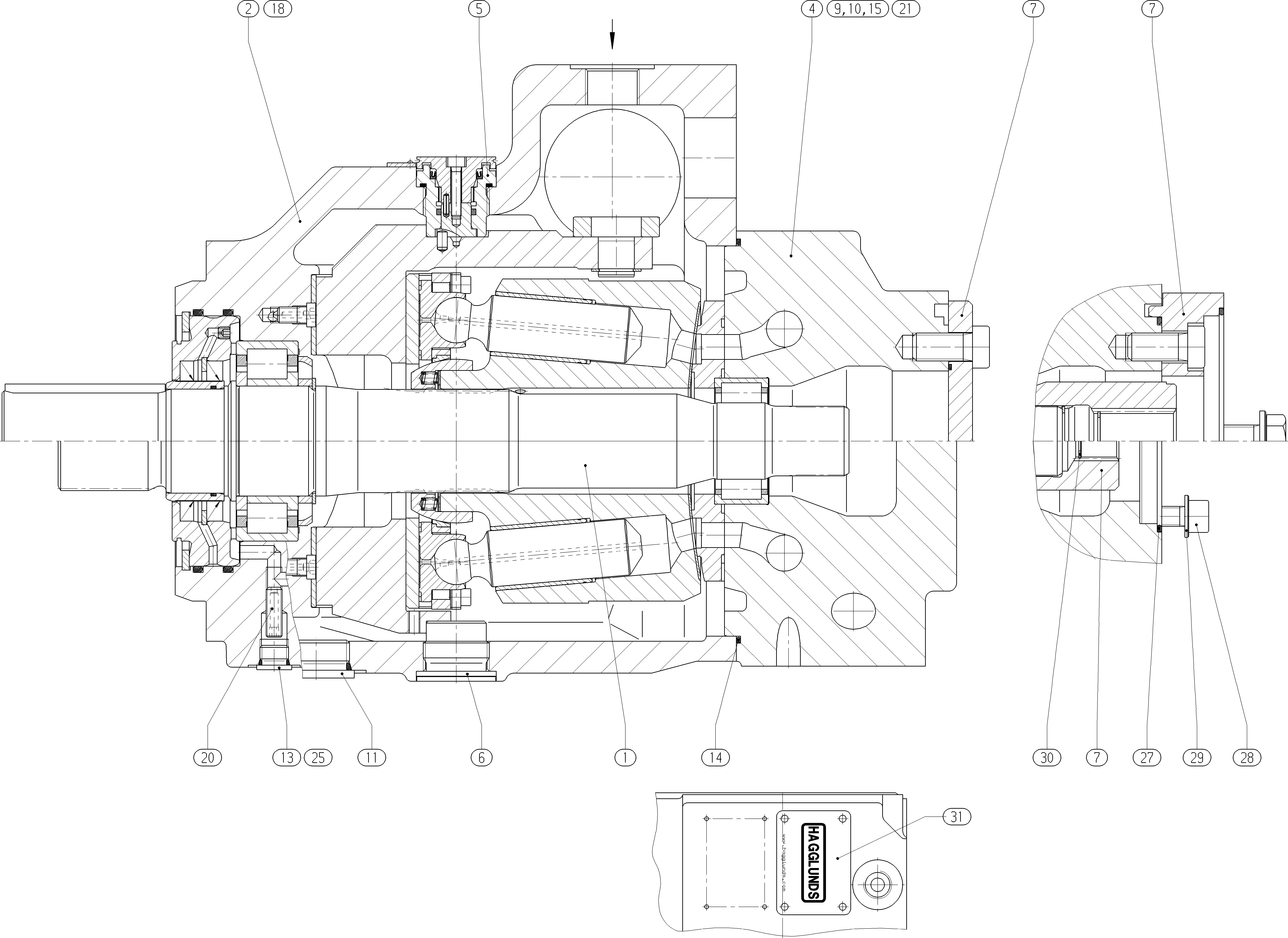

Assembly
BASE UNITR902572567
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902433699 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902572568 | PUMP HOUSING | 1 | ||
| R902572588 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910996983 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910929476 | STUD BOLT Assembly parts list →L | 1 | ||
| R910944376 | SPLINED COUPLING | 1 | ||
| R910513016 | SOCKET HEAD CAP SCREW | 4 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601857 | SCREW PLUGD | 3 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| R910935634 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910995345 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979853 | REFERENCE PLATE | 1 | ||
| R910936812 | O-RING | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 | ||
| R902650190 | WASHER | 2 | ||
| R902419746 | PLATE | 1 |
