Assembly

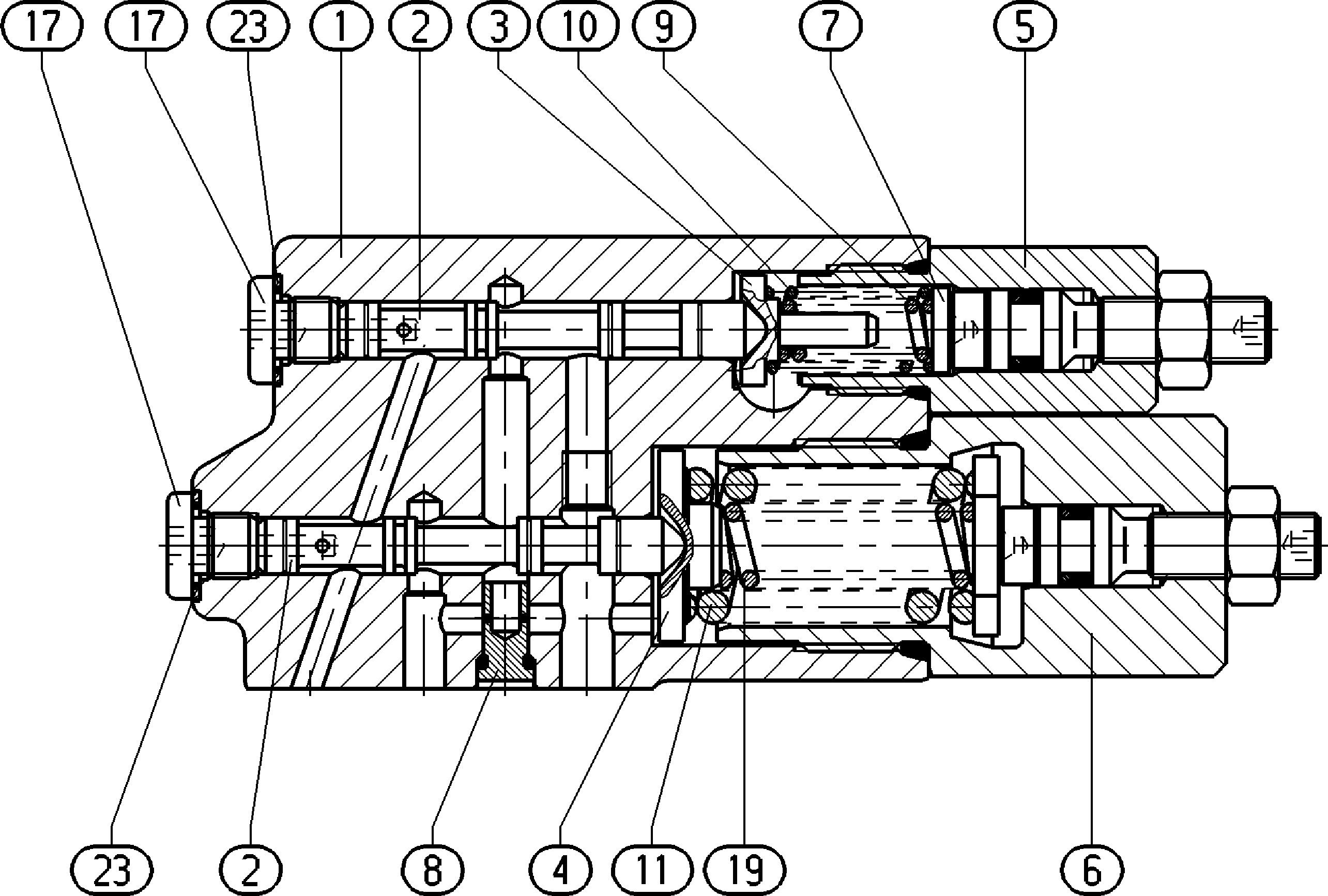

CONTROL VALVER902572946
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902564517 | VALVE HOUSING | 1 | ||
| R902570929 | VALVE SPOOL | 2 | ||
| R902570648 | SPRING DISK | 1 | ||
| R902465640 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902451580 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R902567850 | COMPRESSION SPRING | 1 | ||
| R902567849 | COMPRESSION SPRING | 1 | ||
| R902559539 | COMPRESSION SPRING | 1 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R902559538 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RING | 2 |
