Assembly

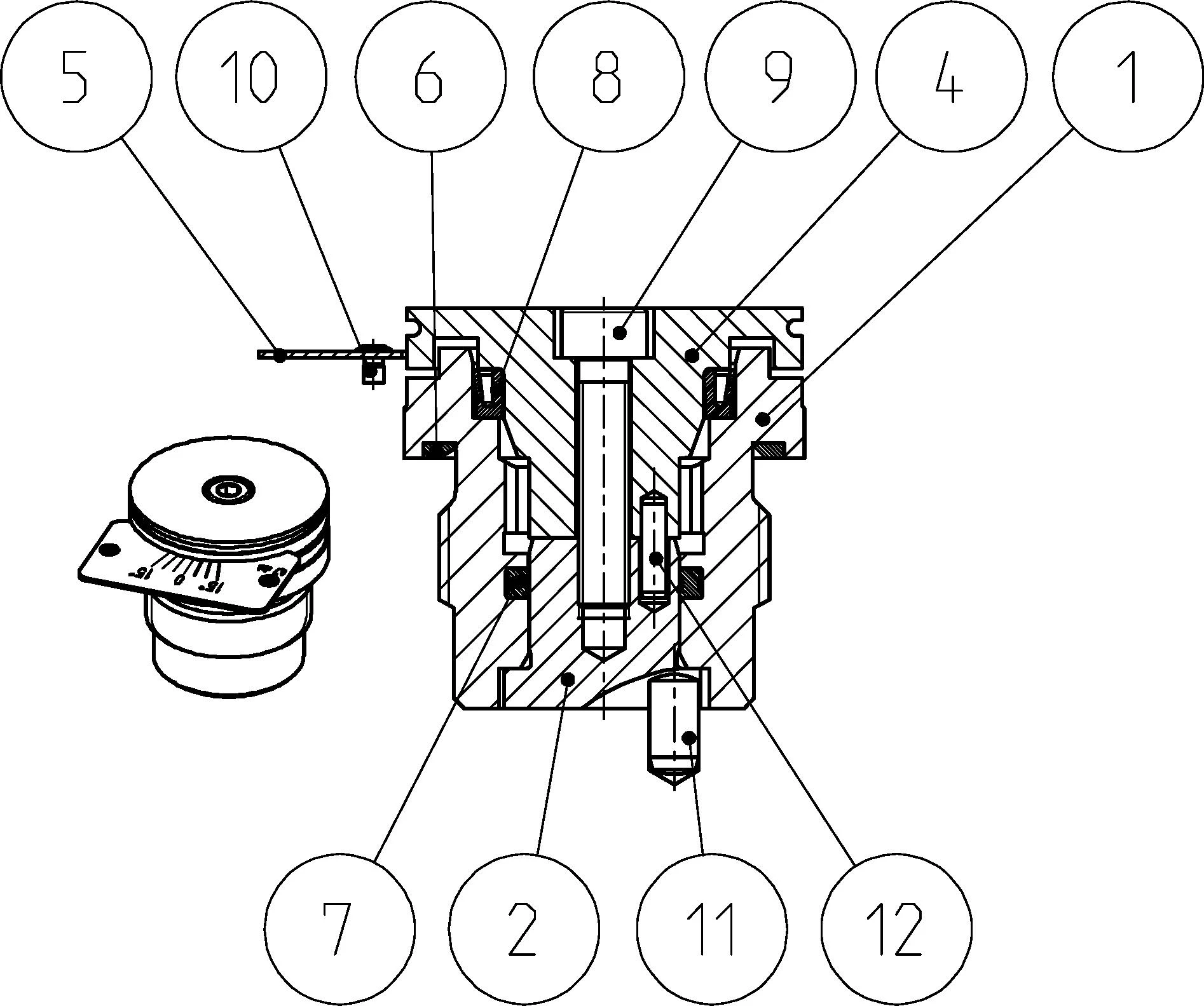

INDICATING DEVICER902595551
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910970505 | STUD BOLT | 1 | ||
| R910970504 | DRIVER PIVOT | 1 | ||
| R910970559 | POINTER | 1 | ||
| R902591154 | DIAL | 1 | ||
| R910744514 | SEAL RINGD | 1 | ||
| 7 | R910963003 | QUAD RINGD | 1 | |
| R910970507 | SEAL RING | 1 | ||
| 9 | R902565486 | SOCKET HEAD CAP SCREW | 1 | |
| 10 | R913091784 | BLIND RIVET | 2 | |
| 11 | R910928490 | STRAIGHT PIN | 1 | |
| 12 | R910125776 | SLOTTED SPRING PIN | 1 |
