Assembly

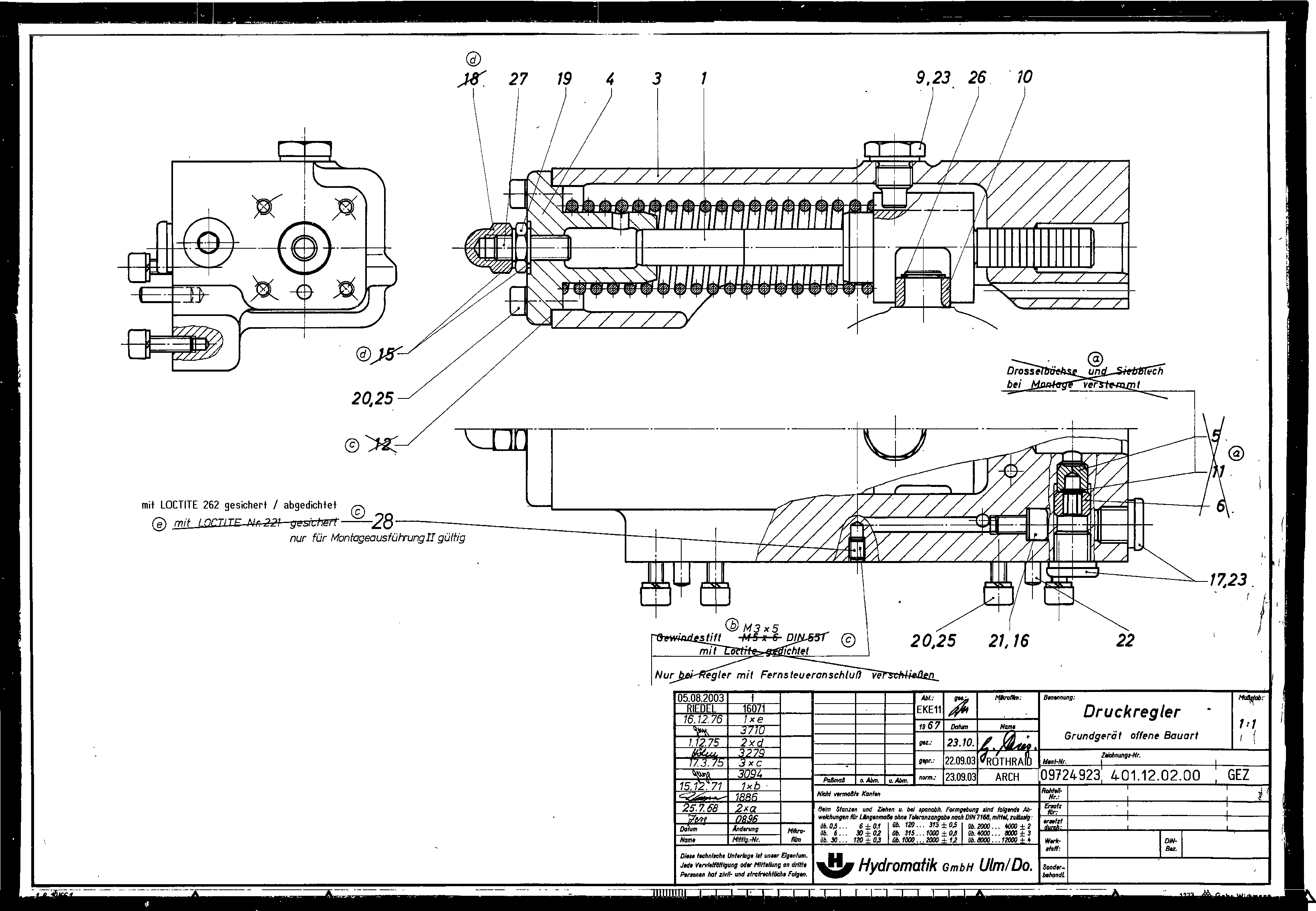

PRESSURE REGULATORR909057081
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909068005 | GOVERNOR ROD | 1 | ||
| R909057082 | CONTROL HOUSING | 1 | ||
| R909002810 | COVER | 1 | ||
| R909002811 | GUIDE SCREW | 1 | ||
| R909444293 | SLIDER | 1 | ||
| R909084302 | SEAL RINGD | 1 | ||
| R909151692 | SCREW PLUG | 2 | ||
| R909153557 | DUMMY | 1 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083017 | SOCKET HEAD CAP SCREW | 1 | ||
| R909086183 | HALF LENGTH TPR GRVD DOWEL PIN | 2 | ||
| R909152726 | SEAL RINGD | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909083517 | SETSCREW | 1 | ||
| R909083488 | SETSCREW | 1 |
