Assembly

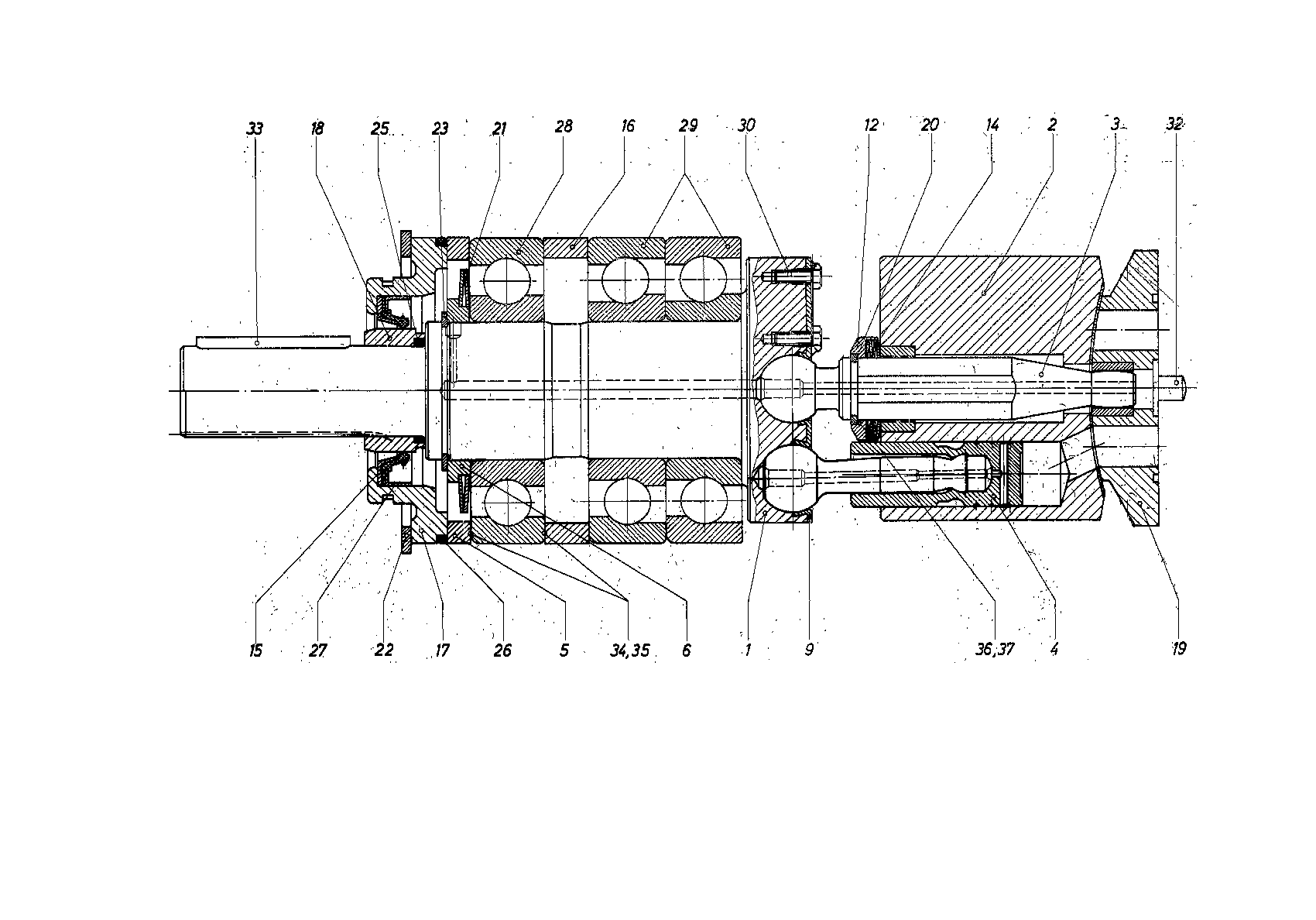

ROTARY GROUPR909061984
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909406622 | DRIVE SHAFT | 1 | ||
| R909404098 | CYLINDER | 1 | ||
| 3 | R909060083 | CENTER PIN | 1 | |
| R909069123 | PISTON/PISTON ROD | 7 | ||
| R909445629 | SPRING DISK | 1 | ||
| R902072551 | RETAINING PLATE | 1 | ||
| R909445614 | SPRING DISK | 1 | ||
| 14 | R909060102 | DISC SPRING | 4 | |
| R909006746 | SPACER BUSH | 1 | ||
| 17 | R909651997 | LOCKING RINGD | 1 | |
| R909070484 | CONTROL PLATE | 1 | ||
| 20 | R909001026 | RING | 1 | |
| 21 | R909006732 | DISC SPRING | 2 | |
| R909083417 | RETAINING RING | 1 | ||
| R909083363 | RETAINING RING | 1 | ||
| R909086756 | O-RINGD | 1 | ||
| R909831285 | SHAFT SEALING RINGD | 1 | ||
| R913023203 | DEEP-GROOVE BALL BEARING | 1 | ||
| R913032712 | ANG. CONTACT BALL BEARING | 2 | ||
| R902602776 | PAN-HEAD SCREW | 14 | ||
| 32 | R909063491 | STRAIGHT PIN | 1 | |
| R909084593 | SHIM RING | 2 | ||
| R909084636 | SHIM RING | 1 | ||
| 36 | R909087152 | SHIM RING | 1 | |
| 37 | R909087181 | SHIM RING | 1 |
