Assembly

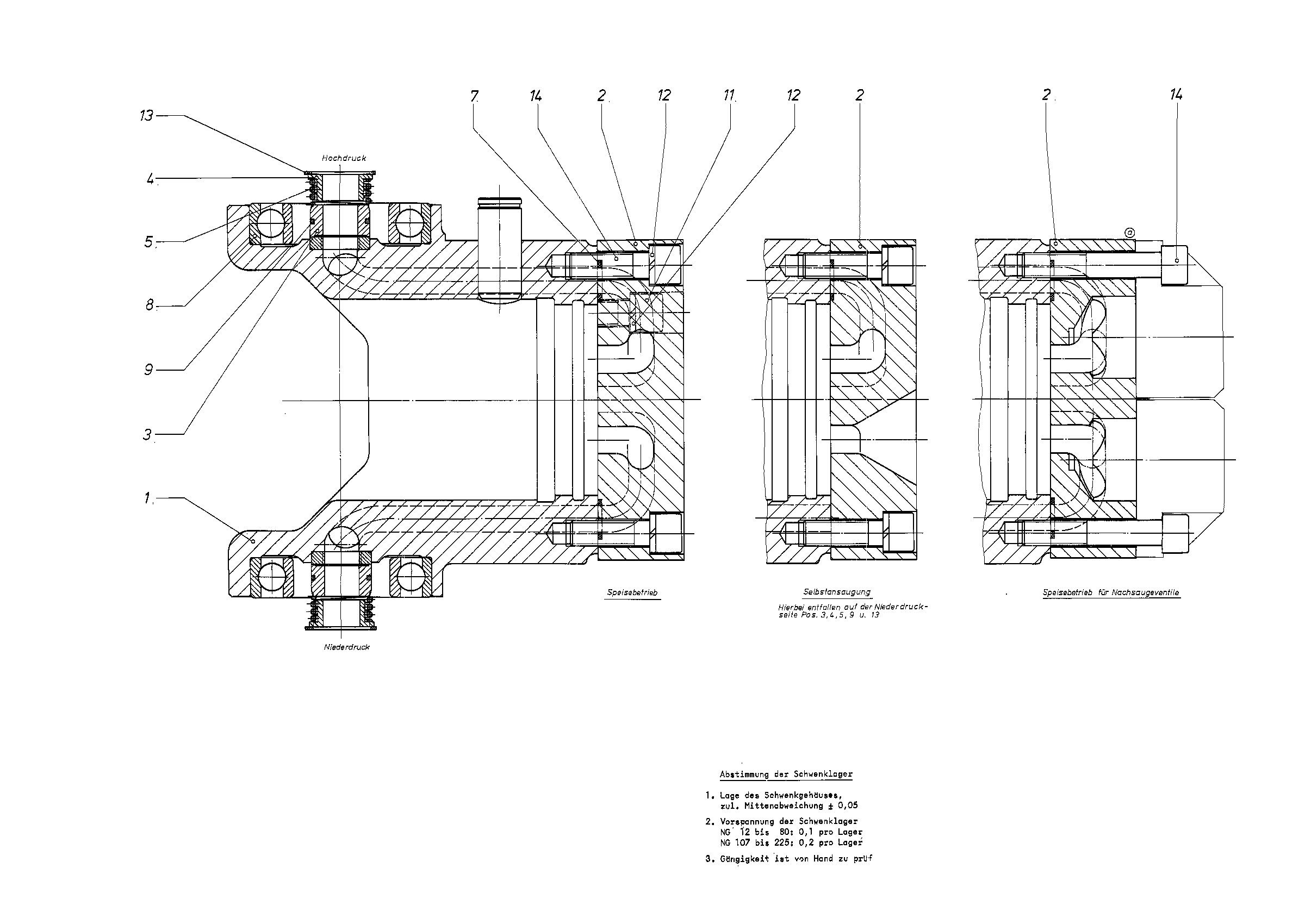

SWIVEL ELEMENTR909062547
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909063259 | SWIVEL HOUSING Assembly parts list →L | 1 | ||
| R909063216 | COVER PLATE | 1 | ||
| R909063268 | SEAL BUSHINGD | 2 | ||
| R909063269 | SPRING BUSH | 2 | ||
| R909064099 | COMPRESSION SPRING | 2 | ||
| R909006243 | TEFLON SEAL RINGD | 4 | ||
| R909085464 | DEEP-GROOVE BALL BEARING | 2 | ||
| R902602840 | STEEL SEALING RINGD | 2 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083252 | SPRING LOCK WASHER | 10 | ||
| R909083390 | RETAINING RING | 2 | ||
| R909083092 | SOCKET HEAD CAP SCREW | 2 |
