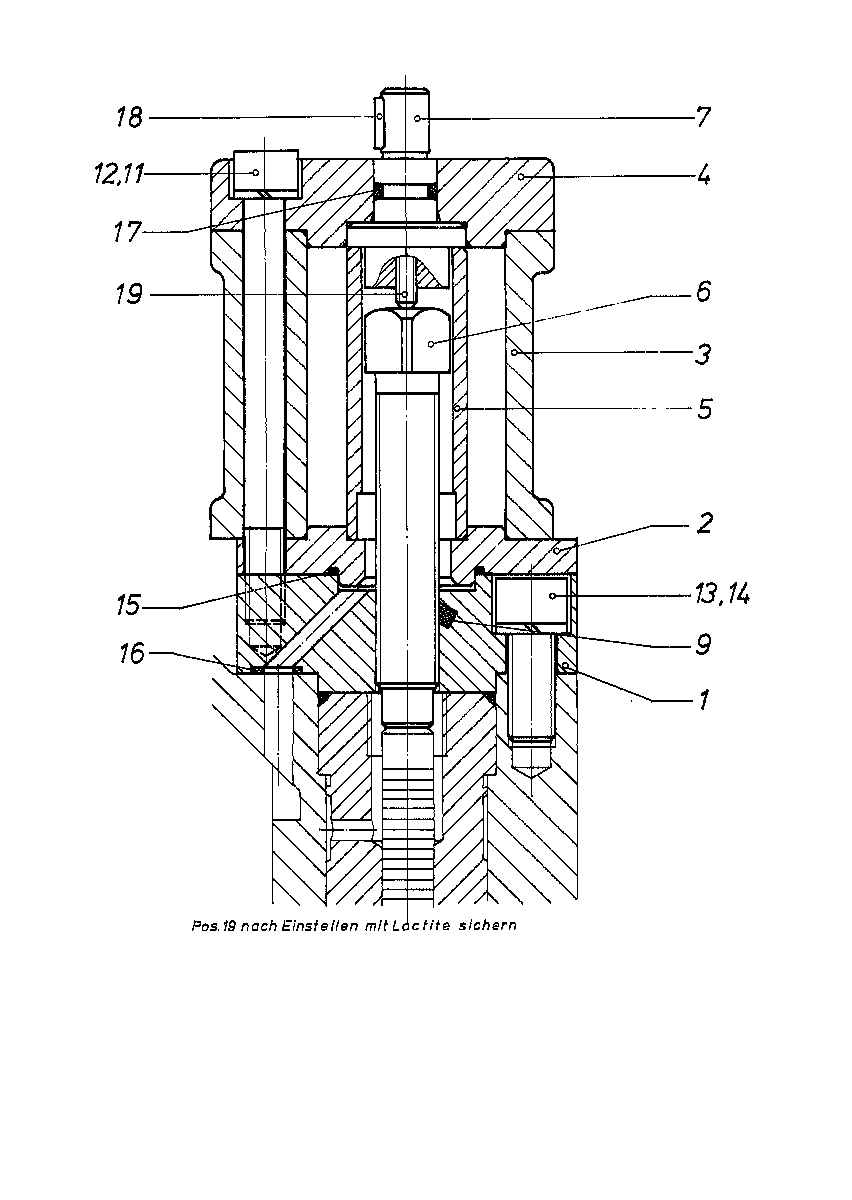

Assembly
POWER REGULATORR909066068
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909066088 | COVER | 1 | ||
| 2 | R909066089 | COVER | 1 | |
| 3 | R909007625 | CYLINDER | 1 | |
| 4 | R909007628 | COVER | 1 | |
| 5 | R909007629 | GUIDE BUSHING | 1 | |
| 6 | R909066087 | SQUARE-HEAD BOLT | 1 | |
| 7 | R909007630 | CARRIER | 1 | |
| 9 | R909059192 | POLYAMIDE PLUG | 1 | |
| R909083076 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083251 | SPRING LOCK WASHER | 4 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083252 | SPRING LOCK WASHER | 4 | ||
| 15 | R902600643 | O-RINGD | 1 | |
| R909085709 | O-RINGD | 1 | ||
| 17 | R909086729 | O-RINGD | 1 | |
| R909083962 | PARALLEL KEY | 1 | ||
| R909087559 | SETSCREW | 1 |
